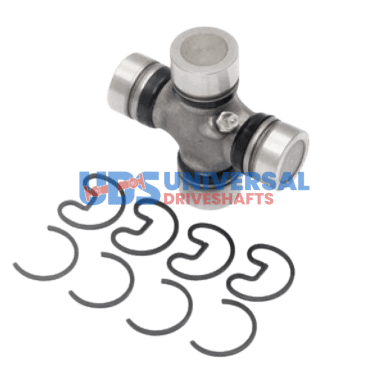

5-788X Universal Joint – 1310 X 7260 Series Detroit (ISR/OSR)
$12.34
3 in stock
Description
5-788XU — Sealed 1310 x 7260 combo U-joint for GM trucks. OSR/ISR snap ring style, 1.078/1.063 in caps. No grease fitting. OEM Spicer cross-reference: 5-788X.
Full Description
| SKU | 5-788XU |
|---|---|
| OEM Cross-Reference | Spicer 5-788X |
| Series | 1310 x 7260 Combo |
| Cap Diameter (1310 side) | 1.078 in |
| Cap Diameter (7260 side) | 1.063 in |
| Width (1310 side) | 2.125 in |
| Width (7260 side) | 3.219 in |
| Style | OSR / ISR (Outer Snap Ring / Inner Snap Ring) |
| Lube | Sealed (no grease fitting) |
5-788XU -- Sealed 1310 x 7260 Combo U-Joint
The 5-788XU is a sealed combo universal joint that bridges the 1310 and 7260 series in a single cross body. The 1310 side uses a 1.078-inch cap diameter with OSR (Outer Snap Ring) retention; the 7260 side uses a 1.063-inch cap with ISR (Inner Snap Ring) retention. This combination is factory-original in GM full-size trucks and SUVs built with a 1310-series transmission output yoke and a 7260-style rear driveshaft flange.
This joint is sealed -- no Zerk grease fitting is present. The factory-sealed needle bearings are pre-lubricated with a long-life grease and protected by a triple-lip seal on each bearing cup. When the seals fail or the joint reaches end of life, replacement (not re-greasing) is the correct service action. Attempting to drill and tap a grease fitting into a sealed cross body destroys the cap geometry.
OSR vs. ISR Retention -- Why It Matters
The snap ring style difference between the two sides is not cosmetic. OSR (Outer Snap Ring) fits in a groove on the outer face of the yoke bore; ISR (Inner Snap Ring) sits inside the bore wall. If you are pressing this joint into a yoke designed for the wrong snap ring style, the cap will either seat incorrectly or fall out under load. Verify both bores before pressing.
Typical Applications
- GM C/K 1500/2500 trucks with 1310 transmission yokes and 7260 rear shaft flanges
- Aftermarket driveshaft connections bridging 1310 donor components to 7260 rear hardware
- Driveshaft repair kits where replacing the full tube is not the preferred approach
In stock at Universal Driveshafts. OEM Spicer cross-reference: 5-788X.
Alternative parts:
Additional information
| Brand | UDS |
|---|---|
| Cap dia 1 | 1.078 |
| Cap dia 2 | 1.063 |
| Lube | N |
| Notes | OSR / ISR |
| Partn number | 5-788XU |
| Series | 1310X7260 |
| Style | COMBO |
| Width 1 | 2.125 |
| Width 2 | 3.219 |
