Brand:
5-443X – 2151-443 , 1-0443 , Outside Snap Ring 1210 Series , 27 x 62 MM , 1.063 X 2.488 Non Greaseable – Solid
$11.64
50 in stock
Description

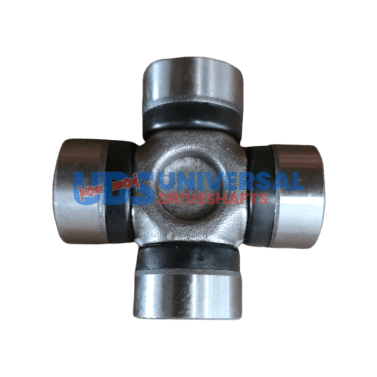

5-443XS universal joint, 1210 series, 1.062″ cap diameter x 2.438″ cross width, sealed non-greaseable design.
Full Description
Fleet operators and professional shops demand U-joints that install quickly, perform reliably, and keep downtime to a minimum. The 5-443XS -- 1210 series, 1.062" cap diameter, 2.438" cross width -- meets those demands with consistent dimensional accuracy and durable construction.
Why 5-443XS Belongs on Your Shelf
Stocking the correct U-joint before a vehicle breaks down is the difference between a 30-minute repair and an all-day parts hunt. The 5-443XS covers 1210 series driveshaft applicationsincluding Non Greaseable Solid U joint and ships in protective packaging that keeps bearing cups free of contamination until installation. The sealed design requires no initial greasing -- install and go.
Dimensional Reference
| Dimension | Measurement |
|---|---|
| Part Number | 5-443XS |
| Series | 1210 |
| Style | OSR |
| Cap Diameter | 1.062" |
| Overall Width | 2.438" |
| Greaseable | No |
Cross Interchangeability
The 1210 series cross uses a 1.062" cap, which is the standard for this torque rating. When sourcing replacements, always verify BOTH cap diameter AND overall cross width -- two joints can share a series designation while differing slightly in width due to manufacturer variation. The 5-443XS dimensions shown above are the definitive fitment reference.
Installation Notes for Shop Use
- Confirm yoke ear ID matches 1.062" -- even 0.001" oversize will allow cup walk
- Press cups to depth where snap ring groove is fully accessible
- No grease prep needed -- sealed factory pack is sufficient for first service interval
- Reinstall driveshaft in marked orientation to preserve balance
- Road test: listen for clunks and check for vibration at cruise speed
Volume Purchasing
Universal Driveshafts supports fleet accounts with competitive pricing on multi-unit orders. The 5-443XS and complementary 1210 series components are available in case quantities. Contact our fleet sales desk for a quote and lead times.
Alternative parts:
Additional information
| Series | 1210 |
|---|---|
| Style | OSR |
| Cap dia 1 | 1.062 |
| Width 1 | 2.438 |
| Lube | No |
| Brand | UDS |
| Notes | Non Greaseable Solid U joint |
