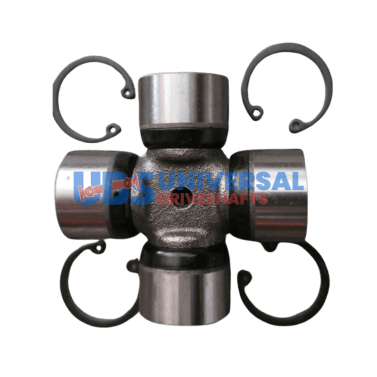

5-1503X Universal Joint – 1751 Series – OSR Style 25 x 63.8 Suzuki GUM81 DODGE COLT Heavy Duty
$7.67
+50 in stock
Description
5-103 universal joint, 1751 series, 0.985″ cap diameter x 2.517″ cross width, greaseable design.
Full Description
Extending driveline service life starts with the right replacement parts. The 5-103 -- a 1751 series universal joint with 0.985" caps and 2.517" cross width -- is built to restore factory-level driveshaft performance and resist the wear mechanisms that cause premature U-joint failure.
Understanding U-Joint Wear
Universal joints operate under continuous oscillating loads and, in many applications, are exposed to road grime, water, and extreme temperatures. Bearing cup surfaces develop micro-pitting when lubrication fails, leading to driveline vibration, clunking, and ultimately complete joint seizure. The 5-103 addresses these failure modes with hardened alloy steel crosses and precision-ground bearing cups that maintain consistent clearance throughout their service life.
Specifications at a Glance
| Attribute | Value |
|---|---|
| Part Number | 5-103 |
| Series | 1751 |
| Style | OSR |
| Cap Diameter | 0.985 in. |
| Cross Width | 2.517 in. |
| Lube Port | Standard zerk fitting -- grease serviceable |
Lubrication Strategy
This joint includes a standard grease fitting. For maximum longevity, purge old grease and re-pack every 30,000 miles or annually -- whichever comes first. Use a NLGI #2 chassis grease rated for U-joint service.
Installation Best Practices
- Measure yoke bore diameter and snap ring groove depth before installation
- Use dedicated bearing cup press tools to avoid cocking the cups
- Lightly oil snap ring grooves before seating new rings
- Rotate the installed joint through full range of motion -- smooth operation confirms correct seating
- Torque all companion fasteners to OEM specification after installation
Fitment Notes
This joint is noted for use with: Suzuki, colt , Vista , Talent, Eclipse , Ram 50. Confirm series and cap dimensions match your driveshaft assembly.
Order with Confidence
Universal Driveshafts provides 1751 series components for automotive, light truck, and specialty vehicle applications. The 5-103 ships fast and includes all necessary hardware. Questions about fitment? Our driveline specialists answer by phone and email.
New to U-joints? See our universal joint guide for styles, snap-ring types, and measuring tips.
Additional information
| Series | 1751 |
|---|---|
| Style | OSR |
| Partn number | 5-103X |
| Cap dia 1 | 0.985 |
| Width 1 | 2.517 |
| Lube | Y |
| Brand | UDS |
| Notes | Suzuki, colt , Vista , Talent, Eclipse , Ram 50 |
