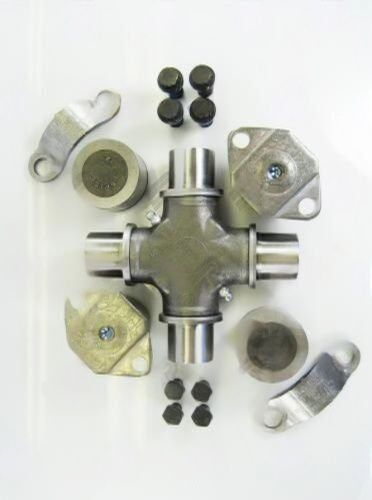

5-675X UDS Universal Joint 1710 Series, 1.938″ cap, 6.094″ width
$32.22
+50 in stock
Description
UDS Series 1710 universal joint 5-675XU with 1.938″ bearing cups and greaseable lubrication for reliable driveshaft performance.
Full Description
Designed for seamless integration into Series 1710 shaft assemblies, the 5-675XU universal joint from UDS is designed with performance in mind for demanding powertrain environments. The 1.938" bearing cup diameter, greaseable lubrication architecture, and HR retention style all correspond to the published Series 1710 dimensional standard, making this the correct OEM-replacement cross kit for a wide range of vehicle and industrial applications.
Technical Specifications -- 5-675XU
| Specification | Value |
|---|---|
| Part Number | 5-675XU |
| Brand | UDS |
| Series | 1710 |
| Cap Diameter (End 1) | 1.938" |
| Width / Span (End 1) | 6.094" |
| Lubrication | Greaseable |
| Retention Style | HR |
| Notes / Cross-Reference | LUBE FITTING IN CROSS , INCLUDES STRAPS |
Fitment & Series Compatibility
The 5-675XU is dimensionally compatible with all standard Series 1710 yokes featuring 1.938"-diameter bore and the HR snap-ring groove pattern. Confirm that both the transmission-side and axle-side yokes specify Series 1710 to ensure correct bearing cup engagement depth and adequate retaining ring seating.Lubrication & Maintenance
The 5-675XU includes a grease fitting (Zerk) at the center cross, allowing lubrication with standard NLGI #2 moly or lithium-complex grease. Purge old grease at each fitting until fresh grease appears at all four bearing caps. For on-highway applications, re-grease intervals of 5,000 miles or 3 months are typical; off-road and severe-duty applications warrant shorter intervals. Avoid over-pressurizing the fitting to prevent seal extrusion.Application Notes
Factory application note for 5-675XU: LUBE FITTING IN CROSS , INCLUDES STRAPS. Verify this cross-reference against the vehicle or equipment build sheet when substituting for an OEM part number. When replacing a worn joint, inspect the yoke ears for wear, the snap-ring grooves for deformation, and the bearing bore for out-of-round condition before installing the new assembly.- Torque all u-bolt or strap bolts to specification after installation
- Balance the driveshaft assembly if replacing the joint on a high-speed shaft
- Use a press or dedicated cross-kit installation tool to prevent bearing cup misalignment
- Do not strike the cross with a hammer once bearing cups are seated
Alternative parts:
Additional information
| Brand | UDS |
|---|---|
| Cap dia 1 | 1.938 |
| Lube | Y |
| Notes | LUBE FITTING IN CROSS , INCLUDES STRAPS |
| Partn number | 5-675X |
| Series | 1710 |
| Style | HR |
| Width 1 | 6.094 |
