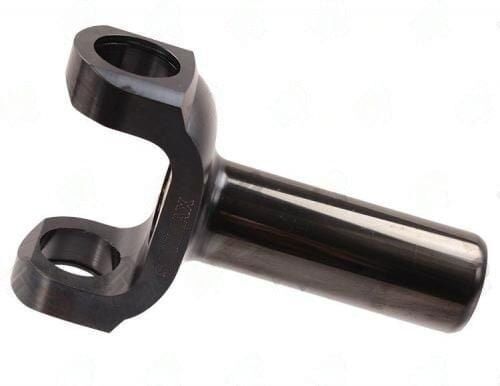

T2-3-4871HP – Transmission Yokes – 1310 Series – 28 x 1.220 Splines – 1.500″ Hub Dia

The T2-3-4871HP transmission yoke is the connection between the gearbox tailshaft and the front of the driveshaft. It splines onto the transmission output shaft and carries the front u-joint of the driveshaft. For 1310 series applications, the spline count and hub diameter are the two specs that determine whether this part fits your tailshaft correctly.

T2-3-4871Hp Transmission Yoke — 1310 Series Specs & Tailshaft Fit

The 1310 series covers light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500. The T2-3-4871HP transmission yoke specs: 28 x 1.220 spline | 1.500" hub | 6.000" CJ-to-end. Compatible with: C4 / Forged Steel / CHROMOLY. Hub diameter determines engagement depth on the tailshaft — if the hub is too short, the splines don't fully engage. CJ-to-end affects driveshaft working length.

After a transmission rebuild or swap, confirm the tailshaft spline count hasn't changed before installing the T2-3-4871HP transmission yoke. Not all 1310 series transmissions use the same output spline across all years and configurations. Count the splines on the actual shaft.

Key Features

• Series: 1310 — light-duty trucks — F-150, Silverado 1500, Jeep Wrangler, Ram 1500
• Spline: 28 x 1.220 — must match transmission tailshaft
• Hub dia: 1.500" — determines spline engagement depth
• CJ-to-end: 6.000" — affects driveshaft working length
• Compatible with: C4 / Forged Steel / CHROMOLY
• Brand: UDS

Specifications

• SKU: T2-3-4871HP
• Brand: UDS
• Series: 1310
• Spline: 28 x 1.220
• Hub Dia: 1.500"
• CJ to End: 6.000"
• Notes: C4 / Forged Steel / CHROMOLY
