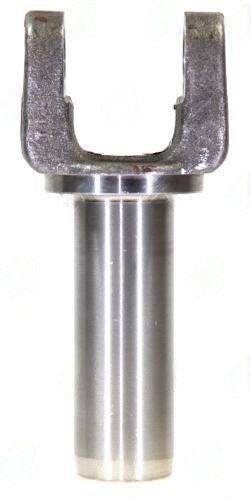

1203-26 – Transmission Yokes – 1251 Series – 24/26 X 1.115 Splines – 1.495″ Hub Dia
$76.87
1 in stock
Description
1251-series Nissan transmission yoke with 24/26×1.115 splines, 1.250″ counterbore, 1.495″ hub, and 6.000″ center-to-end.
Full Description
Hub Diameter Warning: The 1203-26 uses a 1.495" hub diameter. The companion small-hub version (1203-26S) is 1.375". Confirm your tailshaft seal bore before ordering -- installing the wrong hub diameter will cause immediate seal failure and transmission fluid loss on the first drive.
The 1203-26 is the standard 1251-series transmission yoke for Nissan rear-wheel-drive applications using a 24/26-spline, 1.115" PD output shaft with a 1.250" bore diameter counterbore. The 1.250" counterbore is 0.125" larger than the 1203-26S, matching a different Nissan tailshaft bearing retainer OD used across a different range of production years and models. Both variants share the same 6.000" center-to-end dimension and 1251-series U-joint interface. When sourcing a replacement yoke for a Nissan application in this spline class, measure both the tailshaft seal bore and the bearing retainer OD -- the two-digit difference in the counterbore diameter uniquely identifies which variant is required.
Additional information
| Center u joint to end | 6.000 |
|---|---|
| Counter bore dia | 1.250 |
| Hub dia | 1.495 |
| Notes | Nissan |
| Partn number | 1203-26 |
| Series | 1251 |
| Splines count dia | 24/26 X 1.115 |
