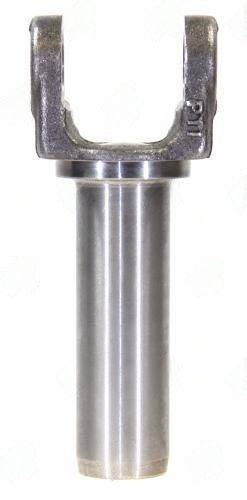

1203-24 This is a very common Nissan yoke with 22/24 splines. It fits a variety of models including both automatic and manual passenger cars and manual pick up trucks
$59.83
7 in stock
Description
Common 1251-series Nissan/Subaru transmission yoke with 22/24×0.995 splines, 1.038″ counterbore, 1.375″ hub, and 5.875″ center-to-end.
Full Description
- Part Number
- 1203-24
- Series
- 1251
- Splines
- 22/24 x 0.995"
- Hub Diameter
- 1.375"
- Counterbore Diameter
- 1.038"
- Center U-Joint to End
- 5.875"
- Application
- Nissan (automatic and manual), Subaru
The 1203-24 is described as a very common Nissan fitment -- the 22/24-spline, 0.995" PD output shaft was used across Nissan's passenger car and manual-transmission truck lineup in large volumes. The 1.038" counterbore is the standard depth for this Nissan variant; the 1203-241 has a slightly larger bore (1.100") for a related but distinct application. The 5.875" center-to-end dimension suits the majority of Nissan rear-drive applications at stock suspension geometry. The 1.375" hub is the small-hub standard; confirm your tailshaft seal is sized to match before installation. This transmission yoke is an appropriate serviceable replacement for both automatic and manual Nissan transmissions in this spline class. Inspect the seal contact surface on the hub OD for grooving caused by the old seal -- a grooved hub will allow oil seepage past a new seal within 5,000 miles.
Additional information
| Center u joint to end | 5.875 |
|---|---|
| Counter bore dia | 1.038 |
| Hub dia | 1.375 |
| Notes | NISSAN- SUBARU |
| Partn number | 1203-24 |
| Series | 1251 |
| Splines count dia | 22/24 X 0.995 |
