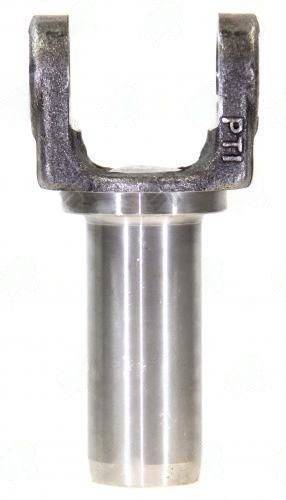

1203-24S – Transmission Yokes – 1251 Series – 22/24 X 0.995 Splines – 1.375″ Hub Dia
$69.62
1 in stock
Description
1251-series Nissan transmission yoke with 22/24×0.995 splines, 1.375″ small hub, 1.000″ counterbore, and 4.750″ center-to-end.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 1203-24S |
| Series | 1251 |
| Splines | 22/24 x 0.995" |
| Hub Diameter | 1.375" (small) |
| Counterbore Diameter | 1.000" |
| Center U-Joint to End | 4.750" |
| Application | Nissan |
- 22/24-spline x 0.995" PD -- lighter-duty Nissan automatic and manual output shaft specification
- "S" (small hub): 1.375" OD requires a 1.375" ID tailshaft seal -- do not install 1.495" seal
- 1.000" counterbore pilots over bearing retainer on this variant; compare against larger 1203-24 bore if unsure
- 4.750" C-to-end -- among the shorter 1251 yokes; suits compact Nissan passenger car driveshaft geometry
- Pair with the correct transmission yoke seal by hub OD, not by application name -- Nissan used multiple bore sizes across production years
An overlooked failure mode on compact Nissan drivetrains: the 22/24-spline interface at this pitch diameter (0.995") has a shallow spline depth that provides less inter-tooth engagement area than larger-diameter designs. Over-tightening the retaining nut to compensate for spline wear will deform the yoke hub rather than improving clamping. Replace the yoke at the first sign of spline wear -- do not attempt to prolong service life through excessive preload.
Additional information
| Center u joint to end | 4.750 |
|---|---|
| Counter bore dia | 1.000 |
| Hub dia | 1.375 |
| Notes | Nissan |
| Partn number | 1203-24S |
| Series | 1251 |
| Splines count dia | 22/24 X 0.995 |
