1503-22 – Transmission Yokes – 1551 Series – 20/22 X 0.959 Splines – 1.375″ Hub Dia
$67.15
1 in stock
Description

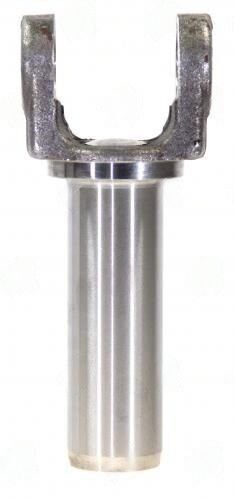

1503-22 1551 series Mazda OE transmission yoke, 20/22-spline x 0.984″ diameter, 5.710″ centerline to U-joint, 0.625″ counterbore.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 1503-22 |
| Series | 1551 |
| Application | Mazda OE Size |
| Splines | 20/22 x 0.984" |
| C/U-joint to End | 5.710" |
| Hub Diameter | 1.375" |
| Counterbore | 0.625" |
- The 1551 series is a metric specification covering certain Mazda RWD and 4WD transmissions -- do not substitute a 7260 or 7290 domestic series yoke even if the spline count appears similar
- 20/22-spline dual count allows fitment in 20-spline or 22-spline Mazda output shafts -- count the output splines before ordering
- Counterbore of 0.625" pilots against the output bearing retainer -- this centering feature must align correctly to prevent lateral yoke movement during operation
- Hub diameter 1.375" -- match to the Mazda transmission output seal; an oversized or undersized hub OD causes immediate fluid leak
Mazda OE-size yokes are required for direct replacement -- aftermarket yokes with different hub ODs or counterbore diameters will not seal correctly in the OEM housing. When ordering for a Mazda RX-7 or Mazda pickup, confirm the transmission type and model year as several variants were produced with different output configurations.
Additional information
| Center u joint to end | 5.710 |
|---|---|
| Counter bore dia | 625 |
| Hub dia | 1.375 |
| Notes | Mazda OE Size |
| Partn number | 1503-22 |
| Series | 1551 |
| Splines count dia | 20/22 X 0.959 |
