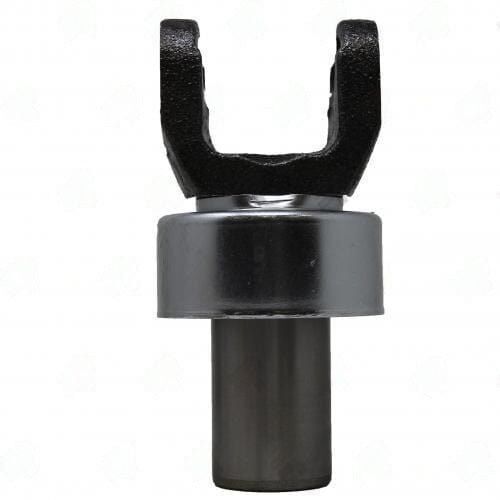

9903-14 – Transmission Yokes – 1751 Series – 14/16 X 1.060 Splines – 1.570″ Hub Dia
$71.86
1 in stock
Description
9903-14 1751 series Suzuki/Geo transmission yoke, 14/16-spline x 1.000″ diameter, 5.250″ centerline to U-joint, 1.570″ hub.
Full Description
Spec Summary: 9903-14 -- 1751 Series | Suzuki/Geo | 14/16-Spline x 1.000" Dia | C/U-joint to End 5.250" | Hub 1.570" | No Counterbore
The Geo Tracker and Suzuki Sidekick share the same platform and transmission -- the 9903-14 yoke fits both Suzuki-badged and Geo-badged versions of these vehicles. The 14/16-spline x 1.000" profile is the smaller of the two Suzuki 1751 series yoke specifications found in this product range (compare with 1703-23 at 21/23 x 0.985"). The larger hub diameter of 1.570" on this part versus 1.258" on 1703-23 indicates a larger output seal bore -- do not substitute between these two parts without confirming the transmission generation.
The 5.250" C/U-joint to end dimension provides more slip travel than the 4.425" version on 1703-23 -- if the transmission has been repositioned during a conversion, verify that the longer yoke does not bottom out in the output bore under suspension compression. Replace the output seal and inspect the yoke hub sealing surface for corrosion before installation. A pitted hub surface will allow fluid past even a new seal.
Additional information
| Center u joint to end | 5.250 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.570 |
| Notes | SUZUKI/GEO |
| Partn number | 9903-14 |
| Series | 1751 |
| Splines count dia | 14/16 X 1.060 |
