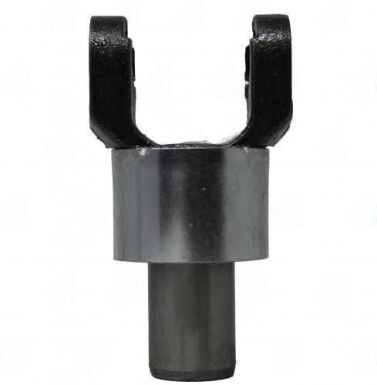

1703-23 – Transmission Yokes – 1751 Series – 21/23 X 0.962 Splines – 1.258″ Hub Dia
$78.21
1 in stock
Description
1703-23 1751 series Suzuki transmission yoke, 21/23-spline x 0.985″ diameter, 4.425″ centerline to U-joint, 1.258″ hub diameter.
Full Description
The 1751 series is a compact metric U-joint specification used primarily on Suzuki vehicles -- the 21/23-spline x 0.985" profile is a Suzuki-specific transmission output that is not directly interchangeable with Toyota, Mitsubishi, or domestic spline profiles of similar diameter. The 21/23-spline dual count allows fitment in both 21 and 23-spline Suzuki output shafts.
- Series: 1751 -- metric-origin U-joint, confirm cap dimensions before sourcing a replacement joint
- Spline: 21/23 x 0.985" pitch diameter -- Suzuki-specific
- C/U-joint to end: 4.425" -- shorter than many compact truck yokes; confirm compressed shaft length before specifying
- Hub diameter: 1.258" -- transmission output seal bore must match this OD
- No counterbore -- centering relies on spline fit and hub OD against the seal bore
Suzuki Sidekick, Vitara, Samurai, and early Grand Vitara models commonly use this yoke specification. Confirm model year and engine/transmission combination, as Suzuki changed output shaft spline counts across model revisions. Always replace the output seal when pulling the transmission yoke.
Additional information
| Center u joint to end | 4.425 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.258 |
| Notes | Suzuki |
| Partn number | 1703-23 |
| Series | 1751 |
| Splines count dia | 21/23 X 0.962 |
