5503-341 – Transmission Yokes – 1550 Series – 32/34 X 1.750 Splines – 2.300″ Hub Dia
$112.53
1 in stock
Description

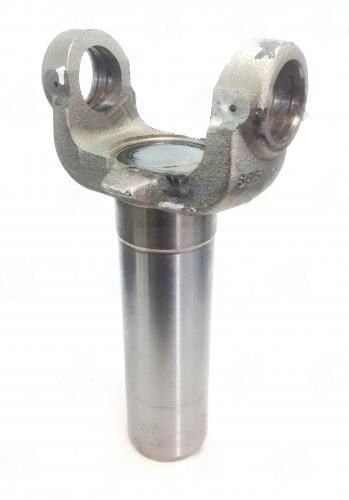

5503-341 1550 series transmission slip yoke, 32/34-spline x 1.625″ diameter, 9.551″ centerline to U-joint, 2.300″ hub diameter.
Full Description
5503-341 -- 1550 Series Transmission Yoke, 32/34-Spline x 1.625"
The 1550 series transmission yoke is rated for Class 6-8 truck applications where the 1480 series torque limit is insufficient. The 2.300" hub diameter on this yoke is larger than most light-truck yokes -- confirm your transmission tail housing seal bore accepts this OD before ordering. The 32/34-spline dual count provides cross-fitment flexibility across heavy-duty Allison, Fuller, and Spicer transmission families that use this hub-end output geometry.
At 9.551" C/U-joint to end, this yoke provides extensive slip travel -- appropriate for medium-heavy trucks with significant drivetrain movement during load cycling. No counterbore is used, meaning the 2.300" hub provides the sole centering interface. Inspect the hub OD and output bore for wear or distortion before installation. Pair with a 1550 series U-joint (1.375" cap diameter) and a 1550-rated weld yoke or flange yoke at the differential end.
Additional information
| Center u joint to end | 9.551 |
|---|---|
| Counter bore dia | |
| Hub dia | 2.300 |
| Partn number | 5503-341 |
| Series | 1550 |
| Splines count dia | 32/34 X 1.750 |
