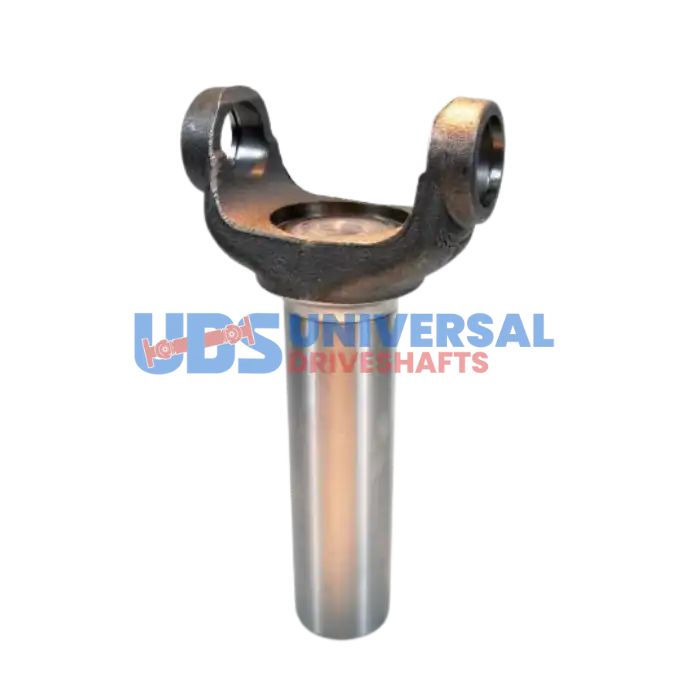

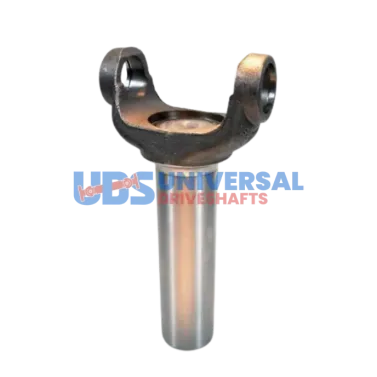

2-3-14191X Transmission Yoke 1330 Series, Splines Count: 26/27 Splines Inside Dia: 1.176 Hub Dia: 1.559
$105.79
19 in stock
11
People watching this product now!
Description
2-3-14191X transmission yoke, 1330 series, 26/27 splines x 1.176″, 7.290″ CL-to-end, 1.559″ hub dia. Count tailshaft splines and verify 1.176″ diameter before ordering.
Full Description
2-3-14191X Transmission Yoke 1330 Series 26/27 Splines 1.176 Dia 1.559 Hub
The 2-3-14191X is a 1330 series transmission slip yoke with a 1.176" spline diameter and 26/27 spline count. The center U-joint to end dimension is 7.290", the hub diameter is 1.559", and the counter bore is 0 (none). The narrower 1.176" spline diameter and lower 26/27 spline count distinguish this yoke from the 2-3-14031X (1.284"x29/30) — these two parts serve different transmission output shaft specifications within the 1330 series range.
Specifications
- Part Number: 2-3-14191X
- Series: 1330
- Spline Count x Diameter: 26/27 x 1.176"
- Center U-Joint to End: 7.290"
- Hub Diameter: 1.559"
- Counter Bore Diameter: 0 (none)
When fitting the 2-3-14191X, verify the transmission output shaft carries either 26 or 27 splines at exactly 1.176" diameter. The 1.559" hub diameter is smaller than the 1.681" hub on the 2-3-14031X — use hub diameter as a secondary verification dimension alongside spline count and diameter. The 7.290" CL-to-end must provide adequate engagement depth into the tail housing without bottoming the yoke against internal stops.
The 2-3-14191X is a 1330 series component; mating U-joints and driveshaft yokes must be 1330 series to ensure cap geometry compatibility. The 1.176" spline diameter is notably smaller than most heavy-duty transmission yoke specs — count splines carefully (26 vs. 27) and confirm the exact spline diameter with a caliper against the output shaft before ordering.
Additional information
| Center u joint to end | 7.290 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.559 |
| Partn number | 2-3-14191X |
| Series | 1330 |
| Splines count dia | 26/27 X 1.176 |
