2-3-10201X Transmission Yoke 1330 Series, Splines Count: 30/31 Splines Inside Dia: 1.391 Hub Dia: 1.886

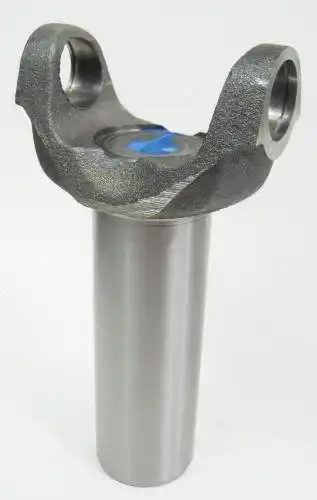

2-3-10201X Dana Spicer 1330 Series Transmission Slip Yoke — 30/31 Splines x 1.391" Diameter

The 2-3-10201X is a Dana Spicer 1330 Series transmission slip yoke engineered for Ford applications using 30/31-spline output shafts. It mounts directly onto the splined output shaft of transmissions and transfer cases — including the Ford 4R100, NP208F, BorgWarner 1356, and 1345R — and telescopes on that shaft as the driveshaft changes length during suspension travel. The 1330 Series yoke accepts U-joint caps measuring 1.062" in diameter. Cross-references include Neapco N2-3-10201X. The "X" suffix denotes a greaseable design with a zerk fitting for field lubrication.

The spline specification for the 2-3-10201X is 30/31 splines at 1.391" inside diameter — the 30/31 designation reflects a Ford-style spline count that is catalogued interchangeably across certain model years. The hub diameter of 1.886" controls the seal fit at the transmission or transfer case tailhousing; installing a yoke with an incorrect hub diameter will either fail to seal or damage the tail seal lip. The center U-joint to end dimension of 7.000" defines the overall yoke length from U-joint cross centerline to the end of the spline bore — this is the telescoping slip distance available when the yoke is at its nominal engagement depth.

Specifications

• Part Number: 2-3-10201X
• Brand: Dana Spicer
• Series: 1330
• Splines: 30/31
• Spline Diameter: 1.391"
• Hub Diameter: 1.886"
• Center U-Joint to End: 7.000"
• Counter Bore Diameter: 0 (no counter bore)
• Type: Greaseable (X suffix)
• Cross References: Neapco N2-3-10201X
• Applications: Ford 4R100, NP208F, BorgWarner 1356, BW 1345R

Fitment & Installation Notes

Before ordering the 2-3-10201X, count the splines on the transmission or transfer case output shaft and measure the shaft's spline minor and major diameters. The 30/31-spline count is specific to certain Ford output shaft configurations — do not assume this yoke fits simply because the application is a Ford vehicle. Verify the hub diameter of 1.886" is correct for the tail seal in the specific transmission model being serviced; Ford used different hub diameters across model years and transmission variants. The counter bore diameter is listed as 0, indicating no stepped bore — the spline bore is consistent from entry to end.

The 1330 Series sits one step above the 1310 in the torque capacity hierarchy and is commonly found on 3/4-ton and 1-ton Ford truck applications where the additional yoke ear width (3.625" vs. 3.219" for 1310) provides a longer U-joint cross for improved torque handling. Both 1310 and 1330 use the same 1.062" cap diameter, but U-joints are NOT interchangeable between the two series due to the different ear span. The 2-3-10201X greaseable design ("X" suffix) requires periodic greasing through the zerk fitting to maintain cap and needle bearing lubrication — sealed yokes are maintenance-free but non-regreaseable.

The 2-3-10201X is the catalogued Dana Spicer part number for this Ford-specific 30/31-spline, 1330 Series slip yoke. Neapco lists the equivalent as N2-3-10201X. When installing this yoke on a 4R100 or NP208F application, confirm the output shaft spline count, hub diameter, and tail seal dimension against the service manual specifications. Explore related Transmission Yoke components including 1310 and 1350 Series slip yokes for other Ford and non-Ford transmission applications.
