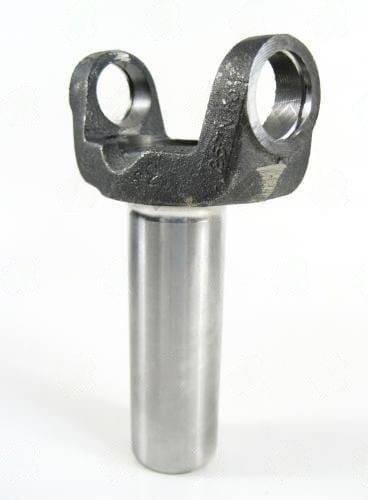

2-3-5981X – Transmission Yokes – 1330 Series – 27/28 X 1.220 Splines – 1.500″ Hub Dia

The 2-3-5981X transmission yoke is the connection between the gearbox tailshaft and the front of the driveshaft. It splines onto the transmission output shaft and carries the front u-joint of the driveshaft. For 1330 series applications, the spline count and hub diameter are the two specs that determine whether this part fits your tailshaft correctly.

2-3-5981X Transmission Yoke — 1330 Series Specs & Tailshaft Fit

The 1330 series covers light-to-medium duty trucks and GM half-ton platforms. The 2-3-5981X transmission yoke specs: 27/28 X 1.220 spline | 1.500" hub | 5.906" CJ-to-end. Compatible with: C4. Hub diameter determines engagement depth on the tailshaft — if the hub is too short, the splines don't fully engage. CJ-to-end affects driveshaft working length.

After a transmission rebuild or swap, confirm the tailshaft spline count hasn't changed before installing the 2-3-5981X transmission yoke. Not all 1330 series transmissions use the same output spline across all years and configurations. Count the splines on the actual shaft.

Key Features

• Series: 1330 — light-to-medium duty trucks and GM half-ton platforms
• Spline: 27/28 X 1.220 — must match transmission tailshaft
• Hub dia: 1.500" — determines spline engagement depth
• CJ-to-end: 5.906" — affects driveshaft working length
• Compatible with: C4
• Brand: UDS

Specifications

• SKU: 2-3-5981X
• Brand: UDS
• Series: 1330
• Spline: 27/28 X 1.220
• Hub Dia: 1.500"
• CJ to End: 5.906"
• Notes: C4
