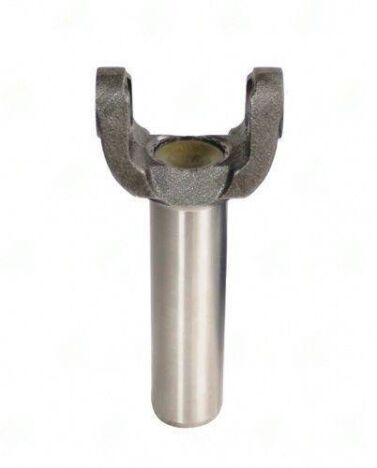

3303-341 – Transmission Yokes – 1330 Series – 32/34 X 1.400 Splines – 1.770″ Hub Dia
$91.69
1 in stock
Description
3303-341 1330 series nickel-plated Nissan Titan and Armada transmission yoke, 32/34-spline x 1.625″ diameter, 8.460″ C/U-joint to end.
Full Description
The Nissan Titan and Armada full-size truck and SUV use the 32/34-spline x 1.625" output specification -- the same spline profile found on the heavier 3503-341 (1350 series) and 3303-341 (1330 series). The 1330 series is the OEM-equivalent fitment for stock Titan and Armada driveshafts; the 1350 version is available for upgraded driveline builds.
- Nickel-plated finish: improved corrosion resistance for vehicles in salt-belt states
- Series: 1330 -- 1.062" cap diameter; matched to the OEM Nissan Titan/Armada driveshaft series
- Splines: 32/34 x 1.625" -- Nissan full-size truck specification
- C/U-joint to end: 8.460" -- long slip yoke for full-size pickup and SUV applications
- Hub: 1.770" -- Nissan transmission output seal bore specification
Confirm model year and transmission type (5-speed, 6-speed, or 7-speed) for the Titan/Armada -- Nissan updated the output spline specification across model years. Cross-reference with Nissan OEM part numbers to confirm the correct generation of this yoke for your vehicle.
Additional information
| Center u joint to end | 8.460 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.770 |
| Notes | Nissan Titan, Armada ( NIckel plated ) |
| Partn number | 3303-341 |
| Series | 1330 |
| Splines count dia | 32/34 X 1.400 |
