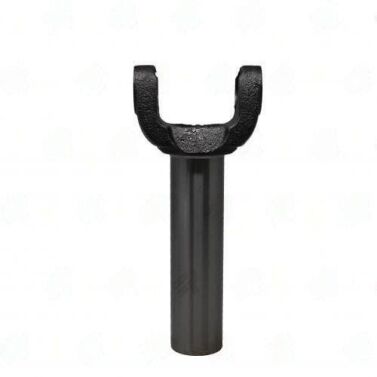

3303-324 – Transmission Yokes – 1330 Series – 30/32 x 1.378 Splines – Center U Joint To End 8.464
$91.65
1 in stock
Description
3303-324 1330 series transmission yoke, 30/32-spline x 1.378″ diameter, 8.464″ C/U-joint to end, 1.385″ counterbore, 1.731″ hub.
Full Description
Spec Summary: 3303-324 -- 1330 Series | 30/32-Spline x 1.378" | C/U-joint to End 8.464" | Counterbore 1.385" | Hub 1.731"
The 30/32-spline dual count at 1.378" pitch diameter spans two different spline counts at the same pitch -- this is unusual compared to the more common 31/32 pairing found in GM TH400 applications. Confirm the exact output shaft spline count on your vehicle to determine which count engages. The 1.385" counterbore pilots against the output retainer, providing centering at this long (8.464") C/U-joint to end dimension.
The 1.731" hub OD is associated with Nissan and Infiniti applications (same as the 3503-323 in 1350 series). At 8.464" length, this is the full-size Nissan/Infiniti application requiring maximum slip travel. Compare 3303-324 (8.464", 1.385" counterbore) with 3303-323 (6.102", 1.375" counterbore) for shorter-wheelbase Nissan/Infiniti applications at the same hub specification.
Additional information
| Center u joint to end | 8.464 |
|---|---|
| Counter bore dia | 1.385 |
| Hub dia | 1.731 |
| Partn number | 3303-324 |
| Series | 1330 |
| Splines count dia | 30/32 x 1.378 |
