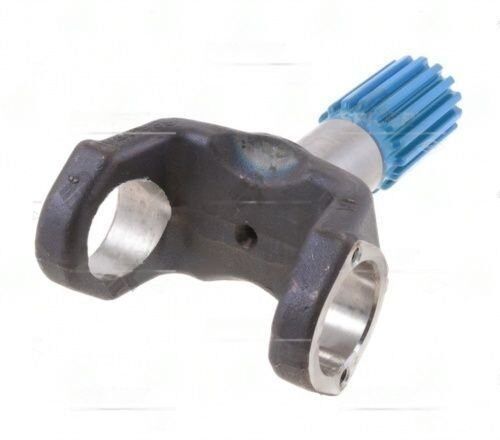

5-82-921U – Yoke Shafts – 1610 Series – 2.000″ Splines Dia – 16 Spline

The 5-82-921U yoke shaft is an integrated assembly — splined shaft on one end, u-joint yoke on the other. It splines onto the output shaft and carries the u-joint cross simultaneously, in one part. For 1610 series applications, both the spline specification and the u-joint series have to be correct. One wrong dimension on either end and the part doesn't work.

5-82-921U Yoke Shaft — 1610 Series Spline & CL Specs

The 1610 series covers Class 5-7 commercial and heavy fleet. The 5-82-921U yoke shaft specs: 2.000" x 16 spline | 2.750" spline length | 7.875" CL-to-end. Spline length determines engagement depth — short engagement under high torque loads damages the output shaft, not just the yoke shaft. CL-to-end positions the u-joint cross relative to the output shaft face; this affects clearance on tight installations.

Verify both ends of the 5-82-921U yoke shaft before installing: spline count against the output shaft, and series cross size against the driveshaft u-joint. If either is wrong, the part has to come back out. Measure once, order correctly.

Key Features

• Series: 1610 — Class 5-7 commercial and heavy fleet
• Spline: 2.000" x 16 — must match output shaft exactly
• Spline length: 2.750" — full engagement required
• CL-to-end: 7.875" — u-joint position from output shaft face
• Integrated design — splined shaft and u-joint yoke in one piece
• Brand: UDS

Specifications

• SKU: 5-82-921U
• Brand: UDS
• Series: 1610
• Spline Dia: 2.000"
• Spline Count: 16
• Spline Length: 2.750"
• CL to End: 7.875"
