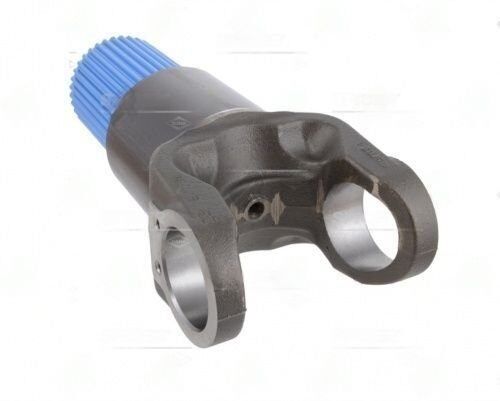

250-82-21X Yoke Shaft SPL250 Splines count 38 Splines Diameter 3.858 Heavy Duty
$192.63
9 in stock
Description
250-82-21X SPL250 heavy-duty yoke shaft, 38-spline x 3.858″ diameter, 8.555″ spline engagement, 11.811″ centerline-to-end.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 250-82-21X |
| Series | SPL250 |
| Spline Count | 38 |
| Spline Diameter | 3.858" |
| Spline Length | 8.555" |
| C/L to End | 11.811" |
| Boot Cap | 109-30-2-94M |
- SPL250 series sits above SPL140 and SPL170 in the Spicer/Dana strength hierarchy -- rated for extreme torque loads in heavy truck and mining applications
- 38-spline interface with 3.858" pitch diameter distributes load across a wide contact area, reducing per-tooth stress significantly versus 1710 or SPL90 shafts
- Verify boot cap 109-30-2-94M is installed before sliding yoke into the slip joint -- a missing boot accelerates grease loss and causes premature spline wear
- Pair with a compatible slip yoke or midship stub shaft rated for SPL250 series
At 11.811" C/L to end, this shaft provides generous slip travel for long-wheelbase trucks and trailers where axle movement exceeds the capacity of shorter yoke shafts. Confirm your transmission output housing accepts a 3.858" spline OD before ordering -- this dimension is unique to SPL250 and is not interchangeable with SPL140 or SPL170 tooling.
Additional information
| Boot cap part | 109-30-2-94M |
|---|---|
| C l to end | 11.811 |
| Notes | SPL250 |
| Partn number | 250-82-21X |
| Series | SPL250 |
| Splines count | 38 |
| Splines dia | 3.858 |
| Splines length | 8.555 |
