N2-81-1181 – Yoke Shafts – 1310 Series – 1.378″ Splines dia – 32 Spline
$231.30
0 in stock
Description
N2-81-1181 1310 series yoke shaft, 32-spline x 1.378″ diameter, 3.500″ spline engagement, 2″ pilot, 3″ bolt circle.
Full Description

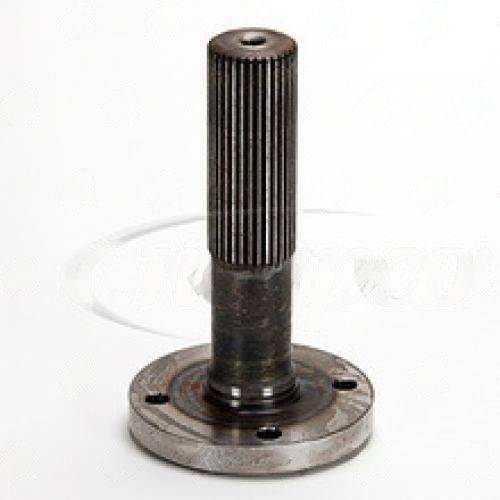

N2-81-1181 -- 1310 Series Yoke Shaft, 32-Spline x 1.378"
A critical installation detail on this part: it carries a 2" pilot diameter and a 3" bolt circle -- both dimensions must match the mating companion flange or differential housing bore before the shaft is installed. Confusing pilot diameter with bolt circle is a common error that results in a loose fit and vibration at operating speed. Cross-reference with Spicer 5-1310X or Dana 1310 series U-joints when servicing the driveline.
The 32-spline x 1.378" profile is standard for many light-truck and medium-duty transfer case outputs. Spline length of 3.500" provides adequate engagement depth for a secure press-fit or slip interface. Boot cap 3R18-321 protects the spline from contamination -- replace it any time the shaft is pulled from the housing. The 1310 series U-joint cap diameter is 1.062", placing it in the lighter end of the Spicer strength range.
Verify the transmission yoke bore and seal diameter match this shaft's hub before assembly. A mismatched seal OD will allow transmission fluid to migrate into the driveline housing, contaminating the spline grease and causing accelerated wear.
Additional information
| Boot cap part | 3R18-321 |
|---|---|
| C l to end | |
| Notes | This part has a 2″ Pilot and 3″ BC. |
| Partn number | N2-81-1181 |
| Series | 1310 |
| Splines count | 32 |
| Splines dia | 1.378 |
| Splines length | 3.500 |
