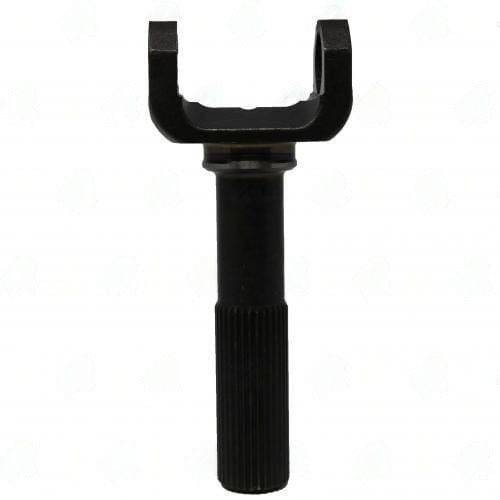

3R82-321 – Yoke Shafts – 3R Series – 1.375″ splines dia – 32 Spline
$72.28
9 in stock
Description
3R82-321 yoke shaft, 3 R series, 32 splines x 1.375-in diameter, 3.350-in length. Splined driveshaft coupling for transfer case and multi-shaft driveline applications.
Full Description
The 3R82-321 yoke shaft provides the splined male engagement for slip-type driveshaft couplings in 3 R series applications. With 32 splines at 1.375 inch diameter and a 3.350 inch spline length, this shaft section mates with the corresponding slip sleeve or transmission yoke to provide articulation and length compensation in the driveline.
Specifications
| Parameter | Value |
|---|---|
| Series | 3 R |
| Spline Count | 32 |
| Spline Diameter | 1.375" |
| Spline Length | 3.350" |
| Notes / Application | Used on Auto Trac Transfer cases from 1998-2007. Includes GM K-series 4x4s, Hummer H2 and GM-G Vans. |
| Part Number | 3R82-321 |
Yoke Shaft Function in Driveline Assemblies
In transfer case and multi-shaft driveline applications, the yoke shaft provides the torque-transmitting spline that engages a corresponding sleeve yoke or slip tube. The spline length -- 3.350 inches on the 3R82-321 -- determines how much axial travel is available for suspension articulation. Correct spline engagement depth is essential: too little engagement and the splines can disengage under maximum droop; too much and the shaft can bottom out and push the differential sideways under compression.
Used on Auto Trac Transfer cases from 1998-2007. Includes GM K-series 4x4s, Hummer H2 and GM-G Vans.
Inspection and Replacement
- Spline wear appears as polished, radiused flanks on the spline teeth -- compare the tooth form to a new part to confirm wear
- Side-load from worn splines can accelerate transfer case output bearing wear; replace promptly when spline slop is detected
- Lubricate the spline engagement with chassis grease or the manufacturer's specified compound at each service interval
- Confirm the 32-spline count on both the yoke shaft and the mating sleeve before assembly
Stocked at Universal Driveshafts
The 3R82-321 yoke shaft is available for same-day shipment for 3 R and related transfer case applications. Contact our driveline specialists to confirm compatibility with your specific drivetrain configuration.
Additional information
| Partn number | 3R82-321 |
|---|---|
| Series | 3R |
| Splines count | 32 |
| Splines dia | 1.375 |
| Splines length | 3.350 |
| Notes | Used on Auto Trac Transfer cases from 1998-2007. Includes GM K-series 4x4s, Hummer H2 and GM-G Vans. |
