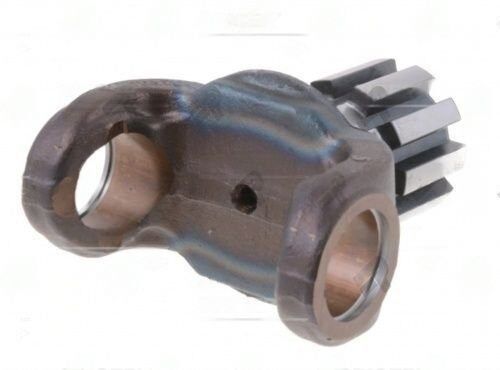

3-82-271 – Yoke Shafts – 1480 Series – 2.250″ Splines Dia – 10 Spline

• 10-spline count is the lowest in the 1480-series yoke shaft family -- most use 16 splines
• Fewer splines means larger individual tooth contact area per spline, which suits heavy shock loads better than fine-spline profiles
• 2.250" spline diameter -- smaller than the 2.500" 4-82-191 in the same series
• Verify mating sleeve has matching 10-spline profile before ordering

The 3-82-271 uses a 10-spline profile unusual in the 1480 series. The coarser spline (10 teeth vs standard 16) is found in specific industrial gearbox outputs where robust, easily-assembled engagement is preferred over precise torque distribution. This stub shaft is not interchangeable with 16-spline 1480-series variants.
