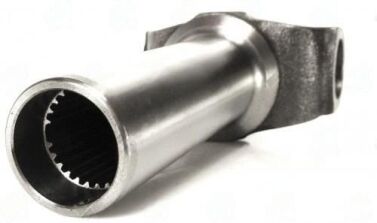

3103-275 – Transmission Yokes – 1310 Series – 1.500″ Hub Dia – Center U Joint To End 5.469
$69.55
1 in stock
Description
Standard 1310-series GM TH350 transmission yoke with 26/27×1.176 splines, 1.500″ hub, and 5.469″ center-to-end.
Full Description
Upgrade Note: For TH700R4 and later 4L60E/4L65E transmissions, use part 3R03-700 -- these units require a longer yoke (approximately 1.3" additional C-to-end) to accommodate the overdrive section. Installing the 3103-275 in a TH700 leaves the driveshaft chronically short on engagement, which will cause vibration and eventually allow tube separation at highway speed.
The 3103-275 is the correct OE-replacement transmission yoke for GM's TH350 automatic transmission as used in cars and light trucks from the mid-1960s through the mid-1980s. The 26/27-spline, 1.176" PD interface was standard across all TH350 variants. At 5.469" center-to-end, this yoke matches the stock tailshaft length without modification. The standard 1.500" hub OD seals against the stock tailshaft seal. This yoke crosses directly to Spicer 2-3-6081X and is functionally identical to the 2-3-6081X when used in street applications. For high-torque builds, step up to the forged chromoly 3R03-350 or T2-3-10431HP depending on your spline requirement.
Additional information
| Center u joint to end | 5.469 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.500 |
| Notes | GM cars and truck until the mid 80’s. Now most use the longer TH700 type in 3R our part number 3R03-700. |
| Partn number | 3103-275 |
| Series | 1310 |
| Splines count dia | 26 / 27 X 1.176 |
