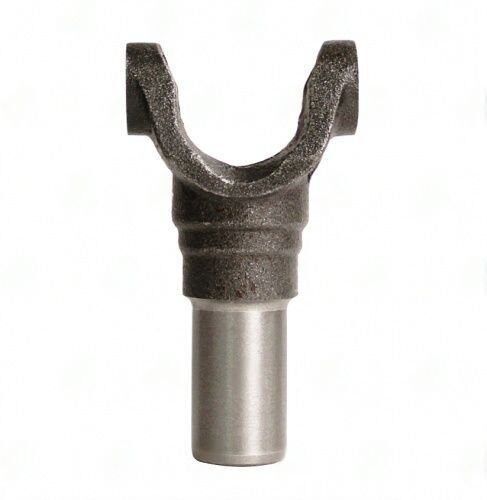

3103-273 – Transmission Yokes – 1310 Series – 1.500″ Hub Dia – Center U Joint To End 5.750
$70.85
1 in stock
Description
1310-series transfer case yoke for 1997-up Jeep Wrangler NP231 external-spline output with boot seal and 5.750″ center-to-end.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 3103-273 |
| Series | 1310 (1.062" cap diameter) |
| Splines | 26/27 x 1.176" (external spline interface) |
| Hub Diameter | 1.500" |
| Center U-Joint to End | 5.750" |
| Boot | Included -- required for NP231 external spline |
| Application | 1997+ Jeep Wrangler NP231 transfer case |
- The 1997 model year NP231 changed to an external-spline output shaft -- earlier Wranglers (pre-1997) use an internal spline; they are not interchangeable
- Boot seal is required to protect the external spline from trail debris and water intrusion -- do not install without it
- 5.750" C-to-end is correct for stock rear driveshaft geometry on TJ-generation Wranglers
- Works with both single-cardan and double-cardan (CV) rear driveshafts at stock suspension height
- For a transmission yoke upgrade with extended boot and CV capability, cross-reference the 3103-273CV variant if a lift kit of 3"+ is planned
Boot clamps should be torqued to manufacturer spec -- an over-tightened clamp on the plastic boot collar of the external-spline NP231 housing will crack the collar and allow sand ingestion, which will score the output shaft splines and destroy the yoke within one season of moderate off-road use.
Alternative parts:
Additional information
| Center u joint to end | 5.750 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.500 |
| Notes | Fits 1997up Jeep Wrangler Has boot and fits on an external spline on the tranfer case, Same as 2-3-13051X |
| Partn number | 3103-273 |
| Series | 1310 |
| Splines count dia | 26 / 27 X 1.176 |
