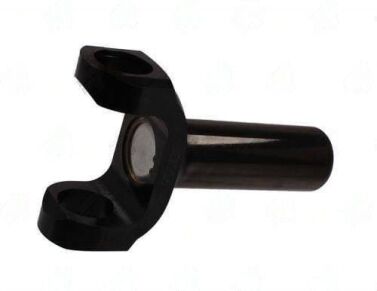

T2-3-6081HP – Transmission Yokes – 1310 Series – 26/27 X 1.176 Splines – 1.500″ Hub Dia
$212.65
1 in stock
Description
T2-3-6081HP forged chromoly black oxide 1310 series TH350 transmission yoke, 26/27-spline x 1.156″ diameter, 5.469″ C/U-joint to end.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | T2-3-6081HP |
| Series | 1310 |
| Application | TH350 |
| Material | Forged Steel Chromoly, Black Oxide |
| Splines | 26/27 x 1.156" |
| C/U-joint to End | 5.469" |
| Hub Diameter | 1.500" |
- The 1310 series chromoly TH350 yoke is the entry-level T-series performance upgrade -- appropriate for street builds up to approximately 400 lb-ft at the driveshaft
- For higher torque, upgrade to T3-3-6081HP (1350 series chromoly) or T2-3-12081HP (1330 series chromoly)
- 26/27-spline x 1.156" and 5.469" C/U-joint to end are the standard TH350 short dimensions -- same as 3-3-6081X in standard steel
- Black oxide finish provides basic corrosion protection
- Pair with a 1310 U-joint
For a TH350 street/strip build where the complete driveshaft is being rebuilt, match the yoke series throughout: 1310 tube yoke at the diff end, 1310 U-joint, and this 1310 transmission yoke. Mixed-series assemblies create unnecessary weak points and complicate future service.
Additional information
| Center u joint to end | 5.469 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.500 |
| Notes | TH350 / Forged Steel / Black Oxidized |
| Partn number | T2-3-6081HP |
| Series | 1310 |
| Splines count dia | 26/27 X 1.176 |
