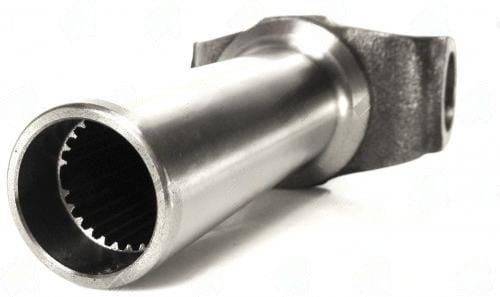

3103-276 Transmission Yoke 1310 26/27 Splines
$59.89
11 in stock
Description
1310-series transmission yoke with 26/27×1.176 splines, 1.221″ counterbore, 1.500″ hub, and 6.420″ center-to-end.
Full Description
Q: What application uses the 3103-276?
A: The 3103-276 is a mid-length 1310 yoke with a 1.221" counterbore, which is not a standard domestic spec -- it appears in import-market applications and some GM transfers where a piloting bore of that diameter is used to maintain concentricity. Measure the bearing retainer OD on your specific transmission or T/C before ordering to confirm bore fitment.
Q: Is the counterbore depth the same as the 3103-28 (Ford C4)?
A: No. The 3103-276 uses a 1.221" bore versus the 3103-28's 1.319" bore. These two yokes are not interchangeable even though both are in the 26/27-spline, 1310 family. Using the wrong counterbore size will cause the yoke to rock on the retainer if the bore is oversized, or fail to seat fully if undersized -- both lead to vibration and accelerated U-joint wear.
Q: How does the 6.420" C-to-end compare to other 26/27-spline options?
A: It falls between the standard 5.469" TH350 yoke (3103-275) and the 6.750" mid-length (3103-277). If you have measured your required transmission yoke C-to-end at approximately 6.4", this is the correct part.
Additional information
| Center u joint to end | 6.420 |
|---|---|
| Counter bore dia | 1.221 |
| Hub dia | 1.500 |
| Partn number | 3103-276 |
| Series | 1310 |
| Splines count dia | 26 / 27 X 1.176 |
