3-3-5551X Fits various 32 spline transmission including Turbo 400 (TH400) with the long tail shaft, 4L80E long tail, 6L50, 6L80E fits GM transfer cases 241C, BW4494, NP205, NP208, NP241, NP241C, NP243, NP246, NP261, NP263 and more.
$53.73
36 in stock
Description

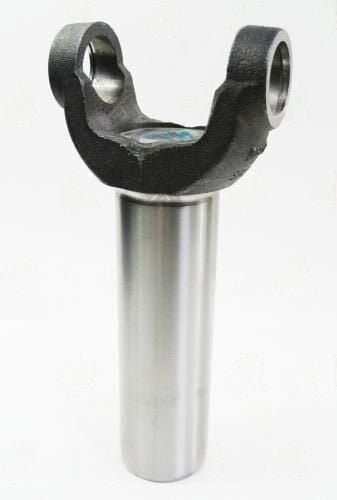

3-3-5551X 1350 series TH400, 208 and 241 transfer case transmission yoke, 32-spline x 1.378″ diameter, 8.000″ C/U-joint to end.
Full Description
The 3-3-5551X covers the TH400 transmission as well as applications with BorgWarner 208 and 241 transfer cases -- the same 32-spline x 1.378" output shaft profile is used across all three. The 8.000" C/U-joint to end is the standard full-length version; compare with the 5.500" short versions (3503-326, T3-3-2431HP) when building a shorter driveshaft for a compact chassis.
- Fits TH400 (Turbo Hydra-Matic 400), BW208, and BW241 transfer case outputs -- confirm which unit is the slip end of the shaft
- 32-spline x 1.378" -- standard TH400/BW208/241 spline specification; single count (not 31/32 dual)
- 8.000" C/U-joint to end -- full-length slip yoke for standard-wheelbase GM trucks and SUVs
- Hub 1.886" -- GM transmission/transfer case output seal bore specification
- No counterbore -- output shaft engagement provides centering
When building a driveshaft for a 4WD GM truck with a TH400 and BW241, determine which end uses the slip yoke -- on most configurations, the rear shaft has the slip yoke at the transfer case and the front shaft uses a fixed yoke. Ordering the wrong yoke type for the wrong end of the shaft is a common mistake.
Additional information
| Center u joint to end | 8.000 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.886 |
| Notes | TH400 208/241 |
| Partn number | 3-3-5551X |
| Series | 1350 |
| Splines count dia | 31/32 X 1.378 |
