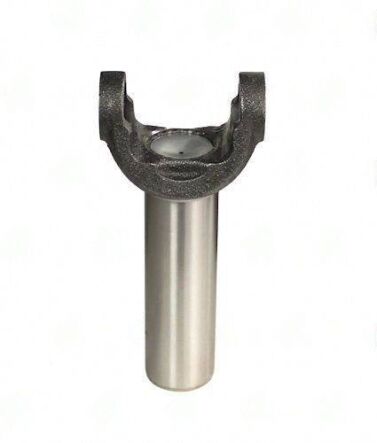

3503-3202 – Transmission Yokes – 1350 Series – 31/32 X 1.378 Splines – 1.886″ Hub Dia
$99.12
1 in stock
Description
3503-3202 1350 series TH400/208/241 transmission yoke with vent hole, 31/32-spline x 1.378″ diameter, 8.000″ C/U-joint to end.
Full Description
Spec Summary: 3503-3202 -- 1350 Series | TH400/208/241 | 31/32-Spline x 1.378" | C/U-joint to End 8.000" | Hub 1.886" | Vent Hole | No Counterbore
The vent hole in 3503-3202 is a functional feature -- it prevents pressure buildup inside the transmission tail housing as the yoke slides in and out during suspension movement. Without the vent hole, the trapped air column acts as a pneumatic piston that resists yoke movement and can cause erratic driveshaft behavior at slow speeds. Some TH400 and BW208/241 applications require the vented yoke; others do not. Check the original yoke for a vent hole before specifying the replacement.
Mechanically, 3503-3202 is otherwise identical to 3503-32 -- same spline count, length, hub diameter, and series. The vent hole is the sole differentiator. Installing a non-vented yoke in an application that requires venting will not cause immediate failure, but pressure buildup may eventually push the output seal out of the housing, causing a transmission fluid leak at the tail shaft.
Alternative parts:
Additional information
| Center u joint to end | 8.000 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.886 |
| Notes | TH400 208/241 (HAS VENT HOLE) |
| Partn number | 3503-3202 |
| Series | 1350 |
| Splines count dia | 31/32 X 1.378 |
