3503-3203 – Transmission Yokes – 1350 Series – 31/32 X 1.378 Splines – 1.886″ Hub Dia
$97.91
1 in stock
Description

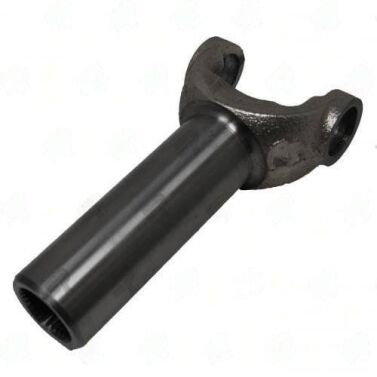

3503-3203 1350 series TH400 transmission yoke, 31/32-spline x 1.378″ diameter, 7.500″ centerline to U-joint, 1.886″ hub diameter.
Full Description
The 7.500" C/U-joint to end on 3503-3203 sits between the 6.938" (3503-329) and 8.000" (3503-32) lengths in the TH400 1350 yoke family. Selecting the correct length is a function of the vehicle's driveshaft measurement -- a yoke that is too long adds to the compressed shaft length and can cause the shaft to contact the tunnel or floor pan at suspension jounce.
- Series: 1350 -- 1.188" cap diameter U-joint
- Application: TH400 -- 31/32-spline x 1.378" output profile
- C/U-joint to end: 7.500" -- measure the existing yoke or compare with shaft measurement before ordering
- Hub: 1.886" -- match to TH400 output seal bore
- No counterbore -- hub provides sole centering interface
- Standard steel construction -- street use; for performance, see T3-3-5571HP (6.938") or T3-3-5551HP (7.940") in chromoly
TH400 transmissions were installed in a wide range of GM passenger cars and trucks from 1964-1990. The exact driveshaft length varies by body style and wheelbase, so measure carefully before specifying the yoke length.
Additional information
| Center u joint to end | 7.500 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.886 |
| Notes | TH400 |
| Partn number | 3503-3203 |
| Series | 1350 |
| Splines count dia | 31/32 X 1.378 |
