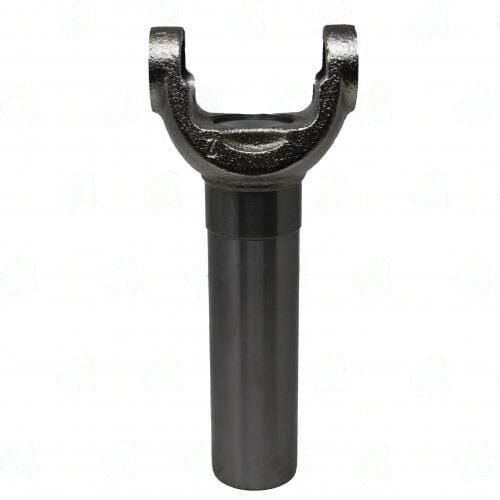

3503-3204 – Transmission Yokes – 1350 Series – 31/32 X 1.378 Splines – 1.886″ Hub Dia
$85.62
1 in stock
Description
3503-3204 1350 series transmission yoke with stepped hub surface, 31/32-spline x 1.378″ diameter, 8.750″ centerline to U-joint.
Full Description
- Part Number
- 3503-3204
- Series
- 1350
- Splines
- 31/32 x 1.378"
- C/U-joint to End
- 8.750"
- Hub Diameter
- 1.886"
- Note
- Stepped surface after hub diameter
- Counterbore
- None
The "stepped surface after hub diameter" note indicates this yoke has a machined step or shoulder behind the hub sealing surface -- this step engages a specific feature in the tail housing to prevent the yoke from migrating rearward under high-torque conditions. This is not a standard feature on most 1350 yokes, so it is an important fitment indicator: if your transmission application has this stepped housing feature, ordering a non-stepped yoke will result in a loose axial fit.
At 8.750" C/U-joint to end, this is one of the longest 31/32-spline 1350 yokes -- appropriate for extended-wheelbase trucks or applications where maximum slip travel is needed. Confirm the application requires this specific length and stepped profile before ordering.
Additional information
| Center u joint to end | 8.750 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.886 |
| Notes | Stepped surface after hub diameter |
| Partn number | 3503-3204 |
| Series | 1350 |
| Splines count dia | 31/32 X 1.378 |
