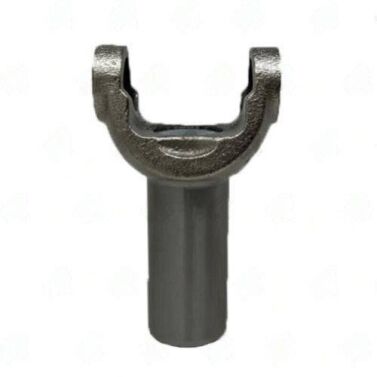

3503-3206 – Transmission Yokes – 1350 Series – 31/32 X 1.378 Splines – 1.886″ Hub Dia
$96.62
1 in stock
Description
3503-3206 1350 series transmission yoke, 31/32-spline x 1.378″ diameter, 5.827″ centerline to U-joint, 1.886″ hub diameter.
Full Description
3503-3206 -- 1350 Series Transmission Yoke, 31/32-Spline x 1.378", 5.827"
The 5.827" C/U-joint to end on 3503-3206 places it between the 5.500" short TH400 yokes and the 6.938" mid-length versions. This intermediate length fills a specific application gap -- confirm your driveshaft measurement requires this exact length before ordering. Even 0.327" of extra yoke length changes the compressed driveshaft dimension by the same amount, which can cause interference at minimum shaft compression.
The 31/32-spline dual count and 1.886" hub are consistent with TH400 and BW208/241 transfer case applications. No counterbore -- the hub engages the output seal for centering. Standard steel construction is appropriate for street use. For race or high-horsepower builds, consider the chromoly T-series yokes. Always confirm total driveshaft length at ride height and full compression when selecting between the different C/U-joint to end dimensions available in the 31/32-spline 1350 series family.
Additional information
| Center u joint to end | 5.827 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.886 |
| Partn number | 3503-3206 |
| Series | 1350 |
| Splines count dia | 31/32 X 1.378 |
