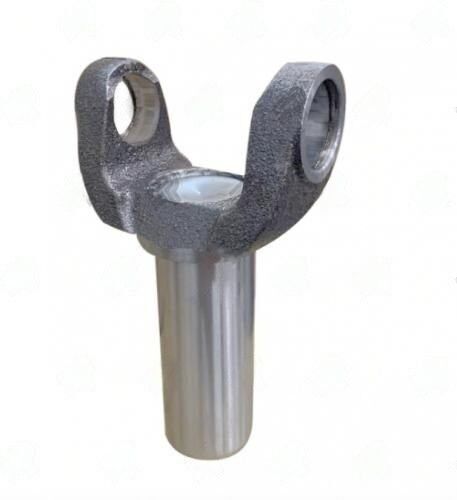

3503-323 Transmission Yoke 1350 Nissan / Infiniti 32 Splines
$122.34
5 in stock
Description
3503-323 1350 series Nissan/Infiniti transmission yoke, 32-spline x 1.378″ diameter, 6.102″ C/U-joint to end, 0.393″ counterbore.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 3503-323 |
| Series | 1350 |
| Application | Nissan/Infiniti |
| Splines | 32 x 1.378" |
| C/U-joint to End | 6.102" |
| Hub Diameter | 1.731" |
| Counterbore | 0.393" |
- The 1.731" hub diameter and 0.393" counterbore are Nissan/Infiniti-specific -- do not substitute a domestic TH400 yoke with a different hub OD without measuring the output seal bore
- 32-spline at 1.378" pitch diameter -- verify against the Nissan transmission output shaft before ordering
- 6.102" C/U-joint to end -- specific to this Nissan/Infiniti application; shorter than most domestic truck yokes in 1350 series
- Verify the mating driveshaft is 1350 series rated -- some Nissan trucks use metric-origin U-joint series that are not compatible with Spicer 1350 cap dimensions
Nissan Titan, Armada, Pathfinder, and Frontier with RWD or 4WD transmissions and 32-spline outputs are potential applications. Infiniti QX56 and QX80 variants also share this output geometry on some model years. Confirm the model year and transmission variant for exact fitment.
Additional information
| Center u joint to end | 6.102 |
|---|---|
| Counter bore dia | 393 |
| Hub dia | 1.731 |
| Notes | Nissan/Infiniti |
| Partn number | 3503-323 |
| Series | 1350 |
| Splines count dia | 30/32 x 1.378 |
