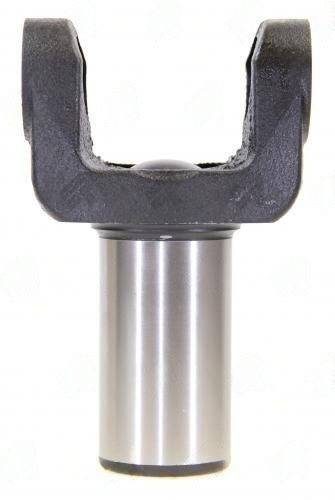

3503-325 – Transmission Yokes – 1350 Series – 31/32 X 1.378 Splines – 1.886″ Hub Dia
$81.86
1 in stock
Description
3503-325 chromoly black anodized 1350 TH400 yoke, 31/32-spline x 1.378″ diameter, 5.500″ C/U-joint to end, 0.510″ counterbore.
Full Description
Spec Summary: 3503-325 -- 1350 Series | TH400 | Chromoly | Black Anodized | 31/32-Spline x 1.378" | C/U-joint to End 5.500" | Counterbore 0.510" | Hub 1.886"
Black anodizing is an electrochemical surface treatment that provides harder corrosion protection than black oxide while being lighter than plating. On a chromoly yoke, the anodizing adds minimal dimensional thickness -- verify that the hub OD and counterbore are finish-machined after anodizing to ensure dimensional accuracy at critical sealing surfaces.
The 0.510" counterbore (slightly larger than the 0.500" on 3503-326) references a slightly different TH400 output retainer OD -- confirm which counterbore dimension matches your specific TH400. At 5.500" C/U-joint to end, this is the same short-length category as other TH400 drag and performance yokes. The chromoly construction makes 3503-325 appropriate for high-horsepower street and strip applications where the standard steel versions are not adequate. Pair with a 1350 series U-joint.
Additional information
| Center u joint to end | 5.500 |
|---|---|
| Counter bore dia | 510 |
| Hub dia | 1.886 |
| Notes | Black Anodized – chromoly |
| Partn number | 3503-325 |
| Series | 1350 |
| Splines count dia | 31/32 X 1.378 |
