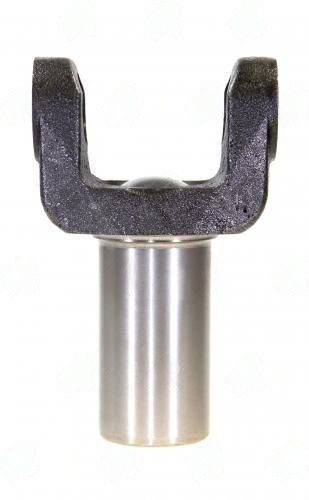

3503-326 Transmission Yoke 1350 Series , TH400 With Counter Bore , Splines: 32 , Hub Dia: 1.886 , Same As 3-3-2431X
$75.62
16 in stock
Description
3503-326 1350 series TH400 transmission yoke with counterbore, Dana 3-3-2431X cross, 32-spline x 1.378″, 5.500″ C/U-joint to end.
Full Description
The product note "Same as Dana 3-3-2431X" is a direct Spicer/Dana catalog cross-reference -- use this number when verifying fitment in OEM service documentation. The 0.500" counterbore on 3503-326 distinguishes it from the no-counterbore 3503-329 at the same length: the counterbore pilots against the TH400 output bearing retainer OD, providing centering that eliminates lateral float.
- Dana cross-reference: 3-3-2431X -- use for OEM parts catalog verification
- Series: 1350 -- 1.188" U-joint cap diameter
- Splines: 32 x 1.378" -- single count, TH400 specification
- C/U-joint to end: 5.500" -- short TH400 length, for compact or purpose-built chassis
- Hub: 1.886" -- match to TH400 output seal bore
- Counterbore: 0.500" -- pilot against the output bearing retainer OD
In stock and mild performance applications, the choice between counterbore and no-counterbore versions is governed by the output retainer design of the specific TH400 variant. In high-performance builds, the counterbore version is generally preferred as it provides better centering under high torsional loads.
Additional information
| Center u joint to end | 5.500 |
|---|---|
| Counter bore dia | 0.5 |
| Hub dia | 1.886 |
| Notes | Same as Dana 3-3-2431X |
| Partn number | 3503-326 |
| Series | 1350 |
| Splines count dia | 31/32 X 1.378 |
