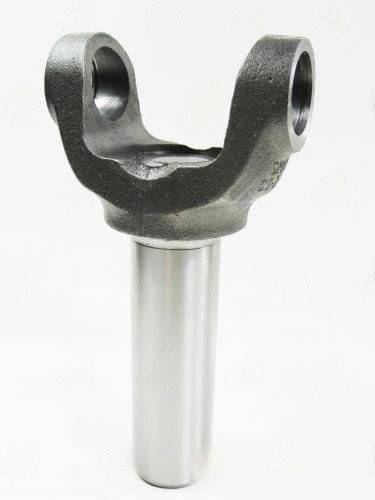

3-3-4281X Transmission Yoke 1350 Series, Splines: 1.176 Spline Count 26/27, Hub Dia:1.500 | 3502-271
$34.42
47 in stock
Description
3-3-4281X 1350 series TH700/700R4 transmission yoke, 1.218″ counterbore, 6.938″ C/U-joint to end, 1.500″ hub diameter.
Full Description
Spec Summary: 3-3-4281X -- 1350 Series | TH700/700R4 | Spline Dia 1.176" | C/U-joint to End 6.938" | Counterbore 1.218" | Hub 1.500"
The 3-3-4281X is the standard steel version of the TH700/700R4 yoke -- the chromoly upgrade is T3-3-4281HP. Both use the same 1.218" counterbore, which distinguishes the 700R4 yoke from the TH350 version (no counterbore). The counterbore references the 700R4 output bearing retainer, preventing lateral float that would cause vibration at cruise speed.
The spline diameter of 1.176" (compared to 1.156" on TH350 variants) is the key measurement for confirming correct fitment. The 700R4/4L60 spline profile is similar to but distinct from TH350 -- measuring the existing yoke or the output shaft is the definitive way to confirm the correct part before ordering. The 6.938" C/U-joint to end accommodates most standard-wheelbase GM car and truck applications. Replace the 700R4 output seal when servicing the yoke -- the 700R4 seal is a known weak point and should be replaced at each yoke removal.
Additional information
| Center u joint to end | 6.938 |
|---|---|
| Counter bore dia | 1.218 |
| Hub dia | 1.500 |
| Notes | TH700 |
| Partn number | 3-3-4281X |
| Series | 1350 |
| Splines count dia | 26/27 X 1.176 |
