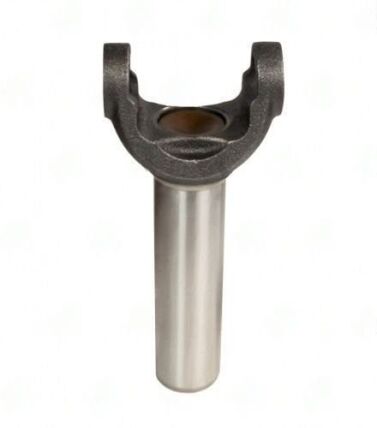

3503-341 – Transmission Yokes – 1350 Series – 32/34 X 1.406 Splines – 1.770″ Hub Dia
$67.24
1 in stock
Description
3503-341 1350 series Nissan transmission yoke, 32/34-spline x 1.625″ diameter, 8.465″ centerline to U-joint, 1.770″ hub diameter.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | 3503-341 |
| Series | 1350 |
| Application | Nissan |
| Splines | 32/34 x 1.625" |
| C/U-joint to End | 8.465" |
| Hub Diameter | 1.770" |
| Counterbore | None |
- Nissan full-size truck and SUV transmissions use a 32/34-spline output profile at 1.625" pitch diameter -- confirm spline count on the specific vehicle before ordering
- Hub 1.770" -- Nissan-specific hub OD; verify the output seal bore accepts this diameter
- 8.465" C/U-joint to end -- longer than most domestic truck yokes in the 1350 series; confirms this is sized for full-size Nissan Patrol, Navara, or Titan applications
- 1350 series: 1.188" U-joint cap diameter; appropriate for mid-duty Nissan driveline applications
Nissan Patrol (Y61/GU), Navara, and Titan models with RWD or 4WD configurations are common applications for this yoke. Confirm the transfer case output spline count as well -- some Nissan 4WD applications use the same yoke geometry at both the transmission and transfer case output ends.
Additional information
| Center u joint to end | 8.465 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.770 |
| Notes | Nissan |
| Partn number | 3503-341 |
| Series | 1350 |
| Splines count dia | 32/34 X 1.406 |
