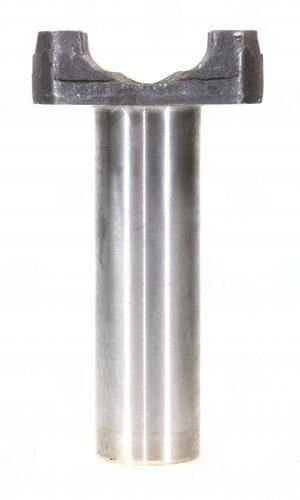

3503-32CV – Transmission Yokes – 1350 Series – 31/32 X 1.378 Splines – 1.886″ Hub Dia
$85.62
1 in stock
Description
3503-32CV 1350 series CV transfer case yoke for BorgWarner 208/241, 31/32-spline x 1.378″ diameter, 7.312″ centerline to U-joint.
Full Description
3503-32CV -- 1350 Series CV Yoke for BorgWarner 208/241 Transfer Case
The "CV" designation in this part number indicates a constant velocity (CV) joint yoke configuration -- it is designed to accept a CV joint assembly at the driveshaft end rather than a standard U-joint. The BorgWarner 208 and 241 transfer cases are found in a wide range of GM 4WD trucks and SUVs, and the CV yoke configuration is used on the front driveshaft output where steering angles require broader articulation than a single Cardan U-joint can provide.
The 7.312" C/U-joint to end provides adequate slip travel for lifted trucks where the transfer case output-to-front-axle distance increases with the suspension modification. The 31/32-spline profile spans both transfer case variants. If replacing an OE CV yoke, verify the new CV joint kit is rated for the 1350 series -- see the CV joint kit category for compatible assemblies. Pair with a 1350 U-joint at the axle end of the shaft.
Additional information
| Center u joint to end | 7.312 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.886 |
| Notes | 208/241 TC CV Yoke |
| Partn number | 3503-32CV |
| Series | 1350 |
| Splines count dia | 31/32 X 1.378 |
