Flange Yokes
More categories:
Filters Sort results
Reset Apply

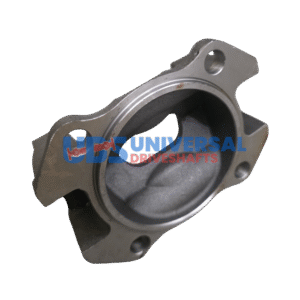

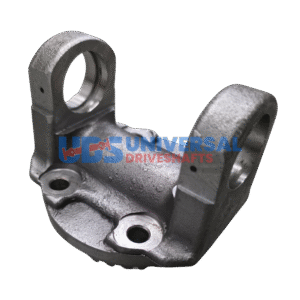

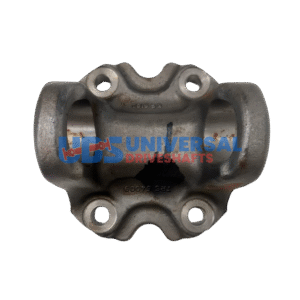

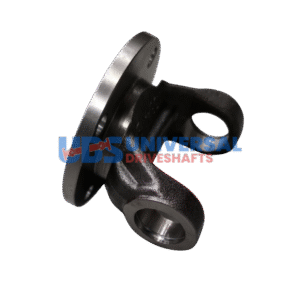

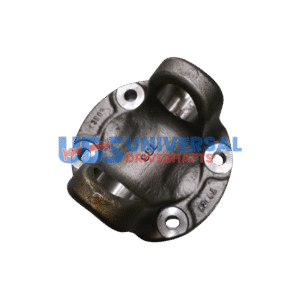

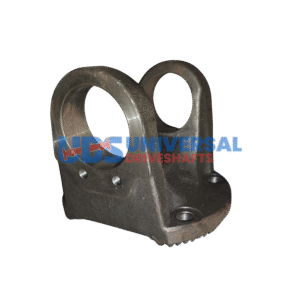

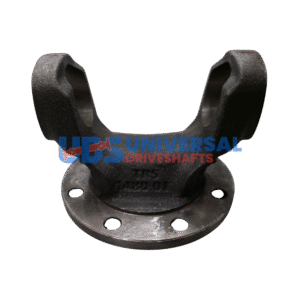

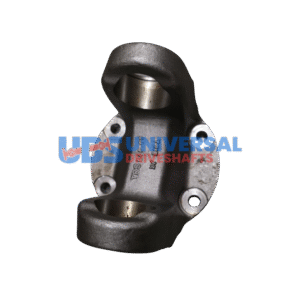

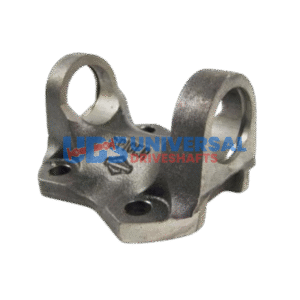

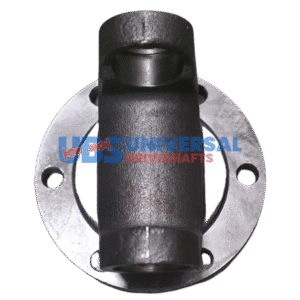

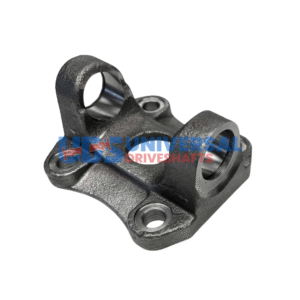

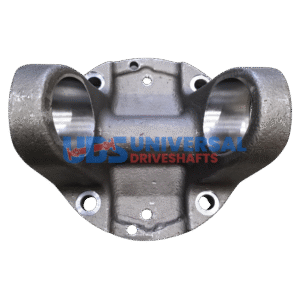

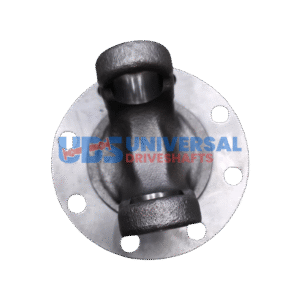

Image | Add | Part number | Series | Pilot dia & type | CJ to Flat | Bolt Circle Dia | Bolt Hole Dia & Holes | Bolt Holes | Swing dia | Brand | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 1310 | 2.750 ⋅ M | 1.375 | 3.750 | 0.438 | 4 | |||||
 | 1210 | 2.250-M | 1.500 | 2.750 | 0.315 | 4 | UDS | Mostly used on Nissan | |||
 | 1310 | 2.000-F | 1.650 | 3.500 | 0.500 | 4 | UDS | Ford 8.8" and 7.5" Small Bolt Pattern | |||
 | 1350 | 2.750 ⋅ M | 1.562 | 3.750 | 0.438 | 4 | |||||
 | 1310 | 2.244-F | 1.968 | 3.307 | 0.345 | 6 | |||||
 | 1310 | 1.850 ⋅ F | 1.930 | 2.933 | 0.315 | 4 | |||||
 | 1310 | 1.811-M | 1.750 | 3.340 | 0.410 | 4 | |||||
 | 1330 | 2.750 ⋅ M | 1.562 | 3.750 | 0.438 | 4 | UDS | REQUIRES A 1330 SERIES UNIVERSAL JOINT | |||
 | 1350 | 2.244-F | 2.625 | 3.307 | 0.345 | 6 | |||||
 | 1310 | 2.375 ⋅ M | 1.375 | 3.125 | 0.375 | 4 | |||||
 | 1330 | 2.000 ⋅ F | 1.625 | 4.250 | 0.500 | 4 | |||||
 | 1350 | 2.000 ⋅ F | 1.625 | 4.250 | 0.500 | 4 | |||||
 | 1310 | 3.625 | 1.375 | 2.875 | 0.380 | 4 | Detroit bell/pot style conversion for early Chrysler's. | ||||
| | 1310 | 2.245 ⋅ M | 1.625 | 2.750 | 0.315 | 4 | UDS | Mostly used on Nissan | |||
 | 1310 | 2.954 | 2.000 | 3.996 | 0.394 | 8 | 1310 - OD 120 - PILOT 75MM - 8 HOLES | ||||
 | 1310 | 2.375 ⋅ M | 1.375 | 3.125 | 0.375 | 4 | |||||
 | 1310 | 1.811-M | 2.718 | 3.575 | 0.450 | 4 | |||||
 | 1410 | 2.954 | 2.500 | 3.996 | 0.394 | 8 | 1410 - OD 120 - PILOT 75MM - 8 HOLES | ||||
 | 1480 | 3.750 ⋅ M | 2.000 | 4.750 | 0.500 | 4 | UDS | ||||
 | 1310 | 2.162 ⋅ F | 2.082 | 3.937 | 0.489 | 4 |
Category Information
A flange yoke is the bolted-end component that connects a driveshaft to a fixed flange on a differential, transfer case, or transmission output. Unlike a slip yoke — which telescopes into the transmission — a flange yoke bolts rigidly to a companion flange, providing a solid rotational connection at the end of the shaft where no axial movement is required. The U-joint cross sits inside the flange yoke ears, transmitting torque through the bearing cups.
Flange yoke selection requires matching three parameters:
Series — the U-joint series the yoke is designed for (1310, 1330, 1350, 1410, 1480, 1550, 1610, 1710, SPL, etc.). This determines the bearing cup bore diameter and snap ring groove geometry.
Bolt circle — the diameter of the bolt pattern on the flange face (e.g., 2.938", 3.125", 4.000"). Must match your companion flange exactly.
Bolt count and size — typically 4-bolt or 6-bolt in grades from 3/8" to 1/2" SAE or metric equivalents.
Universal Driveshafts carries flange yokes for all major series and companion flange configurations, including:
1310, 1330, 1350, 1410 series — light to heavy truck and SUV
1480, 1550 series — Class 5-7 commercial
1610, 1710 series — heavy commercial and industrial
SPL55, SPL90, SPL100, SPL140, SPL170 — industrial and mining
OEM-matched flange yokes for Dana, GM, Ford, Chrysler, and import flanges
All flange yokes in our catalog are manufactured to dimensional standards that ensure the U-joint cross seats squarely in both bearing bores. Off-square installation — caused by a flange yoke with unequal ear height or bore misalignment — creates phase errors that generate first-order vibration. We specify bore diameter, ear height, and pilot diameter in every listing so you can confirm fit before ordering.
