3-2-1159 | 1410 Series Circular Flange Yoke , Holes: 8 x 0.394 Bolt circle Diameter: 3.996 ,Pilot: 2.954F
$25.45
27 in stock
11
People watching this product now!
Description
3-2-1159 1410 series circular flange yoke, 8 x 0.394″ holes, bolt circle 3.996″, pilot 2.954″ (75mm), CJ-to-flat 2.500″, OD 120mm. Verify bolt circle, hole count, and series before ordering.
Full Description

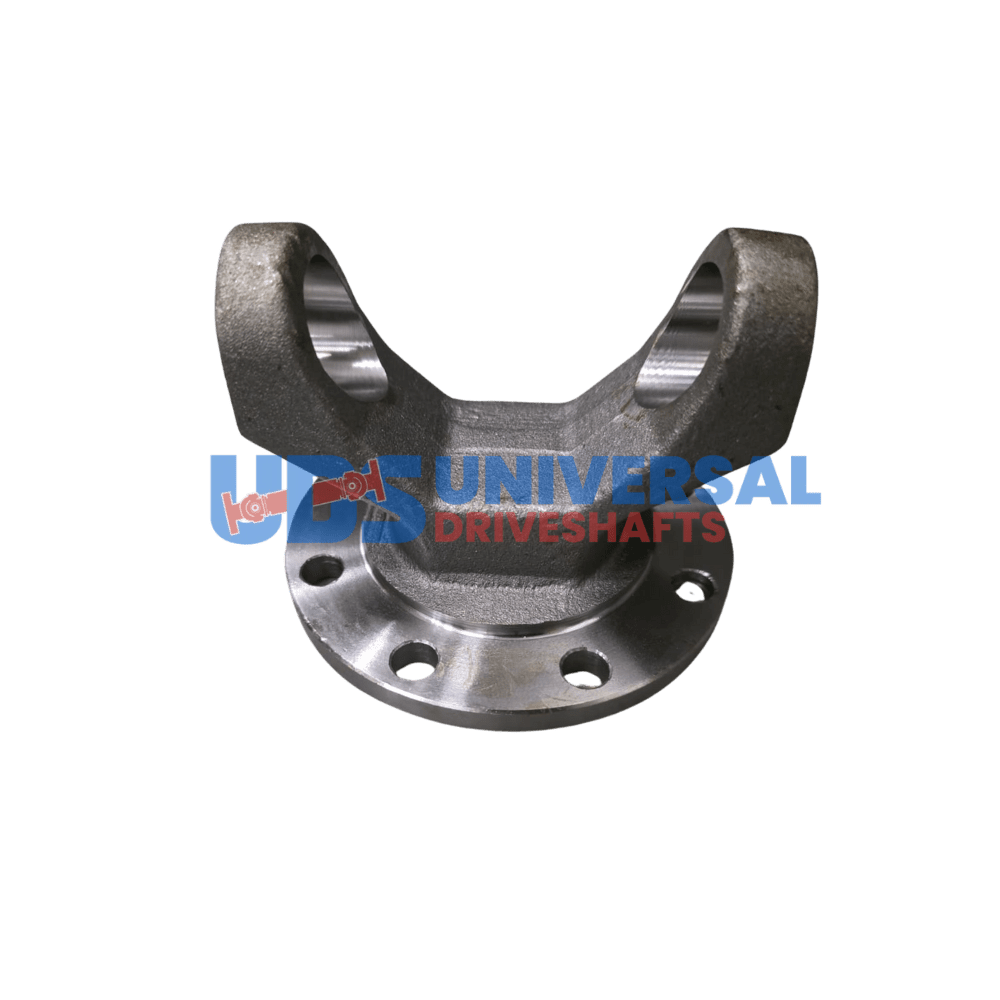

3-2-1159 1410 Series Circular Flange Yoke 8-Bolt OD 120mm Pilot 75mm
The 3-2-1159 is a 1410 series circular flange yoke with an 8-bolt configuration. Bolt hole diameter is 0.394" on a 3.996" bolt circle with a 2.954" pilot diameter. The CJ-to-flat dimension is 2.500". Per the product notes, this yoke features an OD of 120mm with a 75mm pilot (8 holes).
Specifications
- Part Number: 3-2-1159
- Series: 1410
- Bolt Holes: 8 x 0.394"
- Bolt Circle Diameter: 3.996"
- Pilot Diameter: 2.954"
- CJ to Flat: 2.500"
- Notes: OD 120mm, Pilot 75mm, 8 holes
When fitting the 3-2-1159, confirm the companion flange carries 8 holes at 0.394" diameter on a 3.996" bolt circle with a 75mm (2.954") pilot. The circular bolt pattern requires all 8 holes to align simultaneously — verify the companion flange hole count and pattern before ordering. The 2.500" CJ-to-flat dimension is the U-joint working clearance at this interface.
The 1410 series provides higher torque capacity than 1350, positioning the 3-2-1159 for heavy-duty truck and commercial driveline applications. The 120mm OD and 75mm pilot are metric reference dimensions consistent with European and heavy North American commercial vehicle flanges. Note that the 3-2-1159B is the 1350-series variant of this same circular flange geometry — confirm the correct series (1410 vs 1350) against the driveshaft series before ordering the 3-2-1159.
Additional information
| Bolt circle dia | 3.996 |
|---|---|
| Bolt hole dia | 0.394 |
| Cj to flat | 2.500 |
| Partn number | 3-2-1159 |
| Pilot dia | 2.954 |
| Series | 1410 |
| Bolt Holes | 8 |
| Notes | 1410 – OD 120 – PILOT 75MM – 8 HOLES |
