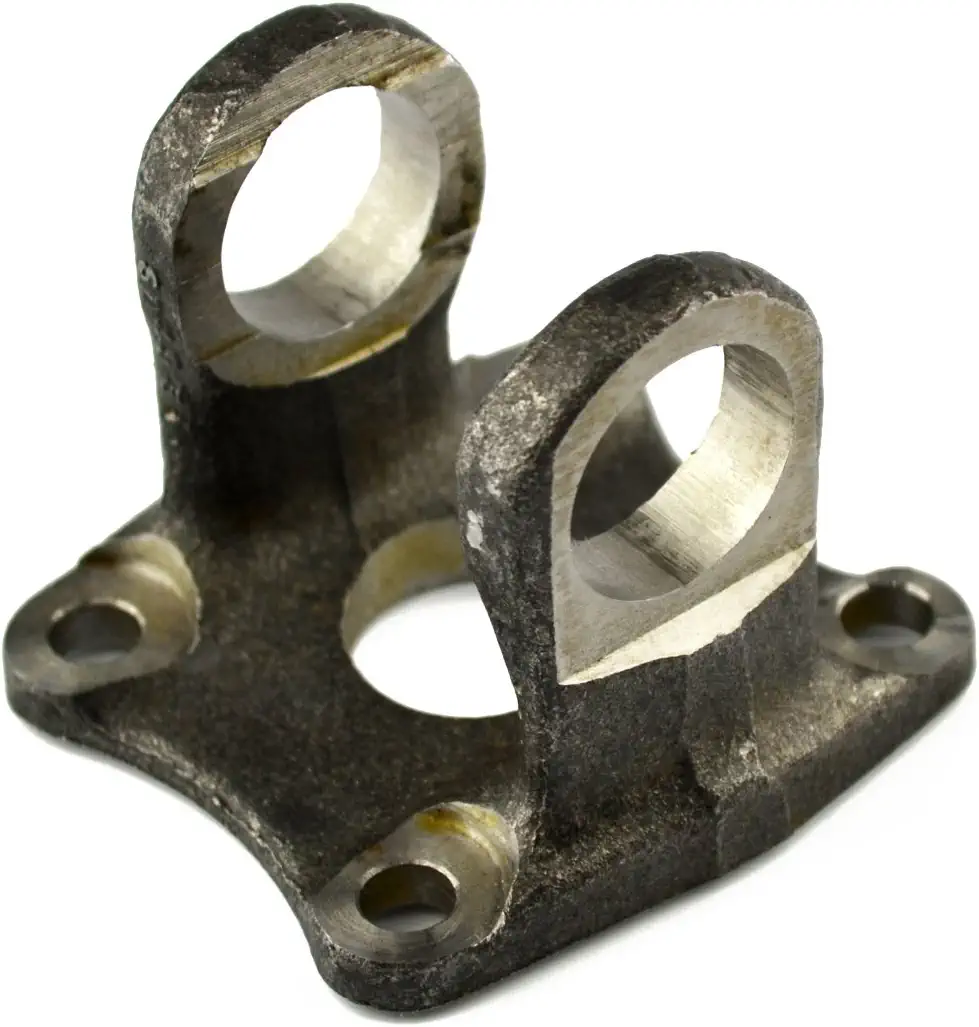

10-2-29 – Flange Yokes – 1000 Series – Pilot Dia 2.250″ – Bolt Circle Dia 2.750

The 10-2-29 is a Series 1000 flange yoke purpose-built for demanding applications in precision driveshaft connections. With a 2.250" pilot diameter and 2.750" bolt circle, it mates directly to companion flanges meeting Series 1000 bolt patterns. Manufactured to OEM interchange dimensions, 10-2-29 eliminates the guesswork of sourcing a correct-fit companion yoke for Series 1000 shaft assemblies.

Technical Specifications -- 10-2-29

Series Compatibility

The 10-2-29 is compatible with all Series 1000 companion flanges and yoke bores meeting the published dimensional standard. The 2.250" pilot diameter is a precision ground fit that centers the yoke concentrically on the mating component. Four bolt holes on a 2.750" bolt circle accept standard Series 1000 fasteners. Verify that the mating component -- whether a differential pinion flange, transfer case output, or transmission tailshaft -- specifies Series 1000 to ensure correct geometry.

Installation & Torque Guidance

Install the 10-2-29 with new fasteners torqued to the vehicle or equipment manufacturer's flange bolt specification. Clean the mating pilot bore and flange face before assembly to ensure full contact. Apply anti-seize compound to flange bolt threads if operating in a corrosive environment. Inspect the yoke ears and snap-ring grooves for burrs after installation of the U-joint cross.

• Use a torque wrench -- do not impact-gun flange bolts to final torque
• Re-torque flange bolts after the first 100 miles in service
• Balance the completed shaft assembly after yoke replacement on high-speed applications

Sourcing 10-2-29 from Universal Driveshafts

Universal Driveshafts maintains inventory of Series 1000 yokes, flanges, and companion hardware for fast-turn drivetrain repairs. The 10-2-29 ships ready for assembly. Our team can cross-reference OEM part numbers and identify matching U-joint crosses, companion flanges, and shaft tube dimensions on request.
