2-2-1339B Flange Yoke 1350 series , 6 x 0.441 Holes on 3.307 Bolt Circle Diameter FY1350-100-6 , 2.244 Female Pilot
$21.31
7 in stock
19
People watching this product now!
Description
2-2-1339B 1350 series flange yoke, 6 holes on 3.307 in bolt circle, 0.345 in holes, 2.244 in female pilot, 2.625 in CJ-to-flat. Verify bolt circle and pilot before ordering.
Full Description

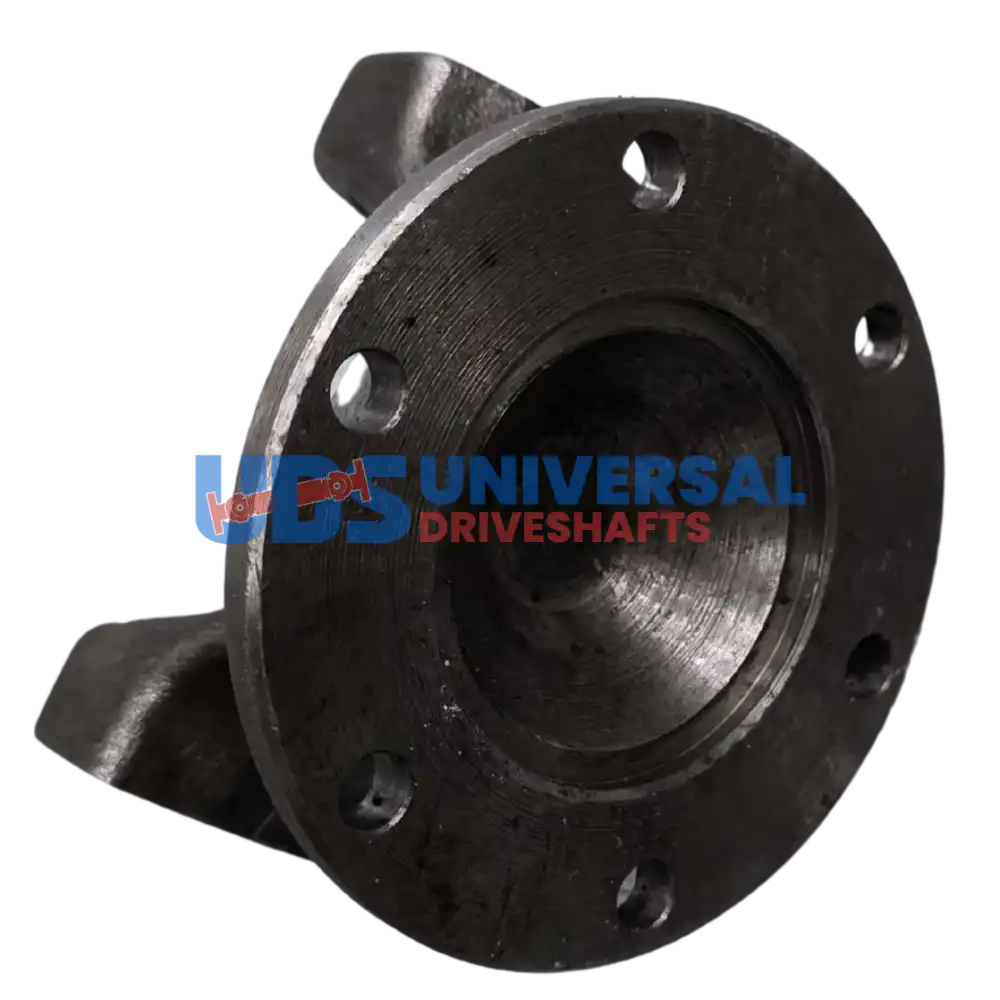

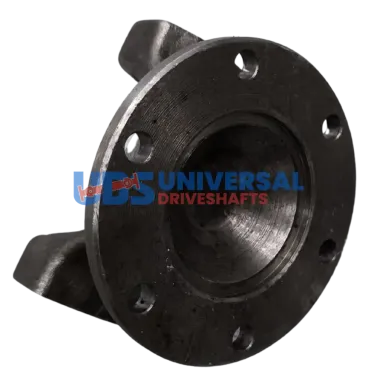

2-2-1339B 1350 Series Flange Yoke — 6-Bolt, Female Pilot
The 2-2-1339B is a 1350 series flange yoke with a 6-bolt pattern. The bolt circle diameter is 3.307 inches with 0.345-inch bolt holes, the pilot diameter is 2.244 inches female (2.244-F), and the centerline-to-flat dimension is 2.625 inches. This yoke cross-references to FY1350-100-6 and bolts to a companion flange at the transmission, transfer case, or differential.
Specifications
- Part Number: 2-2-1339B
- Series: 1350
- Bolt Circle Diameter: 3.307 in
- Bolt Hole Diameter: 0.345 in
- Bolt Holes: 6
- Pilot Diameter: 2.244 in (female)
- Center U-Joint to Flat: 2.625 in
When fitting the 2-2-1339B, verify the companion flange has a 3.307-inch bolt circle with 6 holes at 0.345-inch diameter. The 2.244-inch female pilot registers over the male pilot stub on the companion flange; confirm the male pilot OD is within tolerance for this bore. A mismatched pilot creates runout that manifests as driveshaft vibration at speed.
The 2-2-1339B differs from the 2-2-1339 by its series designation (1350 vs. 1310) and its longer CJ-to-flat dimension (2.625 in vs. 1.968 in). Both share the same bolt circle and pilot diameters, so series identification must come from the U-joint ear dimensions rather than the bolt pattern alone. Use 1350 series U-joints at this yoke. Verify bolt circle diameter and pilot before ordering.
Additional information
| Bolt circle dia | 3.307 |
|---|---|
| Bolt hole dia | 0.345 |
| Cj to flat | 2.625 |
| Partn number | 2-2-1339 |
| Pilot dia | 2.244-F |
| Series | 1350 |
| Bolt Holes | 6 |
