T2-3-8251HP – Transmission Yokes – 1310 Series – 27/28 X 1.220 Splines – 1.500″ Hub Dia
$212.65
1 in stock
Description

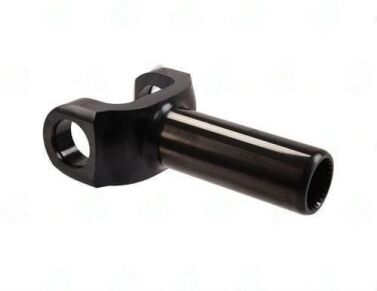

T2-3-8251HP forged chromoly black oxide 1310 series Ford C4 transmission yoke, 27/28-spline x 1.220″ diameter, 6.500″ C/U-joint to end.
Full Description
- Part Number
- T2-3-8251HP
- Series
- 1310
- Application
- Ford C4
- Material
- Forged Steel Chromoly, Black Oxide
- Splines
- 27/28 x 1.220"
- C/U-joint to End
- 6.500"
- Hub Diameter
- 1.500"
- Counterbore
- None
The T2 designation in this family refers to the 1310 series -- the lightest in the T-series chromoly yoke lineup. For Ford C4 applications at moderate power levels (factory to mild street performance), the 1310 chromoly yoke provides a durability upgrade from the OEM cast steel part without over-engineering the driveline.
The 27/28-spline x 1.220" and 1.500" hub confirm the standard C4 output specification -- same as 2-3-5981X (1330 standard steel) and T2-3-5981HP (1330 chromoly). The 6.500" C/U-joint to end is slightly longer than the 5.906" short version, providing more slip travel for applications where the driveshaft requires additional compression clearance. Replace the C4 output seal at each yoke service. Pair with a 1310 series U-joint.
Alternative parts:
Additional information
| Center u joint to end | 6.500 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.500 |
| Notes | C4 / Forged Steel / Black Oxidized / CHROMOLY |
| Partn number | T2-3-8251HP |
| Series | 1310 |
| Splines count dia | 27/28 X 1.220 |
