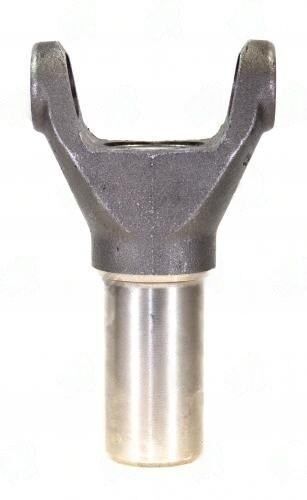

3303-327 – Transmission Yokes – 1330 Series – 31/32 X 1.378 Splines – 1.700″ Hub Dia
$60.93
1 in stock
Description
3303-327 1330 series Jeep transmission yoke for small seal applications, 31/32-spline x 1.378″ diameter, 6.125″ C/U-joint to end.
Full Description
3303-327 -- 1330 Series Jeep Yoke, Small Seal, 31/32-Spline x 1.378"
The "small seal" designation on this Jeep yoke is the critical ordering note -- Jeep transmissions (AX-5, AX-15, NV3550, NV4500) used different output seal diameters depending on production year and specification. The 1.700" hub OD on 3303-327 is the small-seal version; the large-seal version has a different hub OD. Installing the wrong hub diameter will cause an immediate seal leak at the transmission output.
The 31/32-spline x 1.378" profile at 1.330 series is used on many Jeep YJ Wrangler, TJ Wrangler, and Cherokee XJ applications with these output shafts. The 6.125" C/U-joint to end is specific to the Jeep compact driveshaft geometry. No counterbore -- hub and spline engagement provide centering. Pair with a 1330 series U-joint and confirm the existing output seal bore diameter before ordering to ensure the small-seal version is correct for your application.
Additional information
| Center u joint to end | 6.125 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.700 |
| Notes | Jeep with small seal |
| Partn number | 3303-327 |
| Series | 1330 |
| Splines count dia | 31/32 X 1.378 |
