T2-3-6041HP – Transmission Yokes – 1330 Series – 30/31 X 1.391 Splines – 1.685″ Hub Dia
$212.65
1 in stock
Description

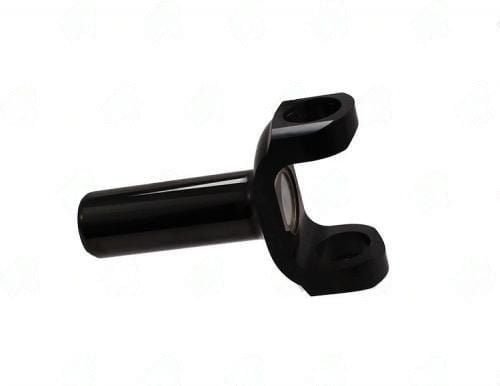

T2-3-6041HP forged chromoly black oxide 1330 series Ford C6 transmission yoke, 30/31-spline x 1.391″ diameter, 6.000″ C/U-joint to end.
Full Description
The T2 prefix designates the 1330 series in this chromoly yoke family -- distinguishing it from T3 (1350 series) and T4 (1410 series) variants. The 1330 series provides a trunnion width advantage over 1310 at the same 1.062" cap diameter, making it a useful intermediate-strength upgrade for Ford C6 applications where 1310 is inadequate but 1350 is overkill.
- Series: 1330 -- 1.062" cap diameter, wider trunnion span than 1310
- Application: Ford C6 (same spline profile as 3503-314 in 1350 series)
- Material: Forged steel, chromoly, black oxide
- Splines: 30/31 x 1.391" -- confirm against C6 output shaft
- C/U-joint to end: 6.000"
- Hub: 1.685" -- match to C6 output seal bore
Cross-reference with the standard steel 2-3-6041X for the non-performance version. When building a performance C6 driveshaft, select T2 (1330) for mild upgrades or T3 (1350 series) for high-horsepower builds. The forged chromoly construction in the T2 family handles more shock load than standard cast or machined steel yokes. Replace the C6 output seal when servicing.
Additional information
| Center u joint to end | 6.000 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.685 |
| Notes | C6 / Forged Steel / Black Oxidized / CHROMOLY |
| Partn number | T2-3-6041HP |
| Series | 1330 |
| Splines count dia | 30/31 X 1.391 |
