T2-3-4911HP – 1310 Series – UDS Brand

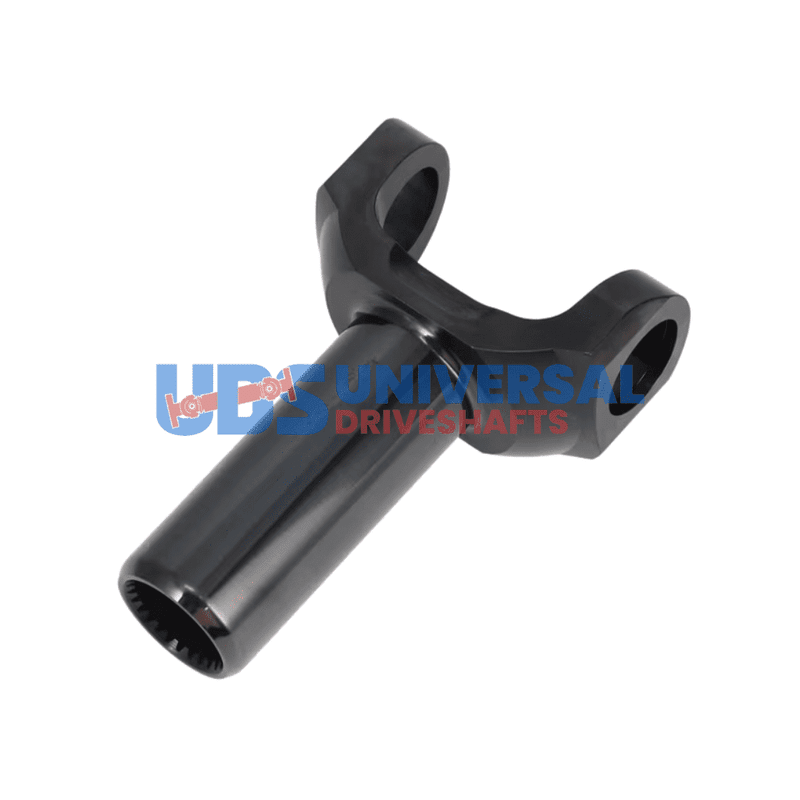

T2-3-4911HPU UDS 1310 Series Transmission Yoke — C4 Chromoly Forged

The T2-3-4911HPU is a 1310 series transmission yoke manufactured by UDS from forged chromoly steel, designated for the C4 transmission. It features a 26/27-spline bore at a 1.176-inch diameter with a hub diameter of 1.500 inches. The centerline of the U-joint to the end measures 4.875 inches.

Specifications

• Part Number: T2-3-4911HPU
• Brand: UDS
• Series: 1310
• Spline Count x Diameter: 26/27 x 1.176"
• Hub Diameter: 1.500"
• CJ to End: 4.875"
• Counter Bore Diameter: 0 (none)
• Notes: C4 / Forged Steel / Chromoly

When fitting the T2-3-4911HPU, count the C4 transmission output shaft splines and verify the diameter is 1.176 inches with a 26/27 spline count before ordering. The 26/27 designation indicates a spline profile that transitions between 26 and 27 teeth — this is specific to the C4 output shaft and will not engage a standard 27-spline or 28-spline shaft correctly. The T2-3-4911HPU is constructed from forged chromoly steel, providing greater material strength than a standard cast or forged steel yoke. The 1310 series U-joint interface is appropriate for the torque levels typical of C4 transmission applications. The 4.875-inch CJ-to-end dimension determines the yoke's engagement depth and positioning within the driveline — verify this is compatible with your driveshaft length.
