T35-ALFY-10 High-Strength 6-Bolt Adapter Flange Yoke Kit for 2015-2019 Ford Mustang – Eliminates CV Joint, Converts to U-Joint Driveline
$227.74
1 in stock
Description

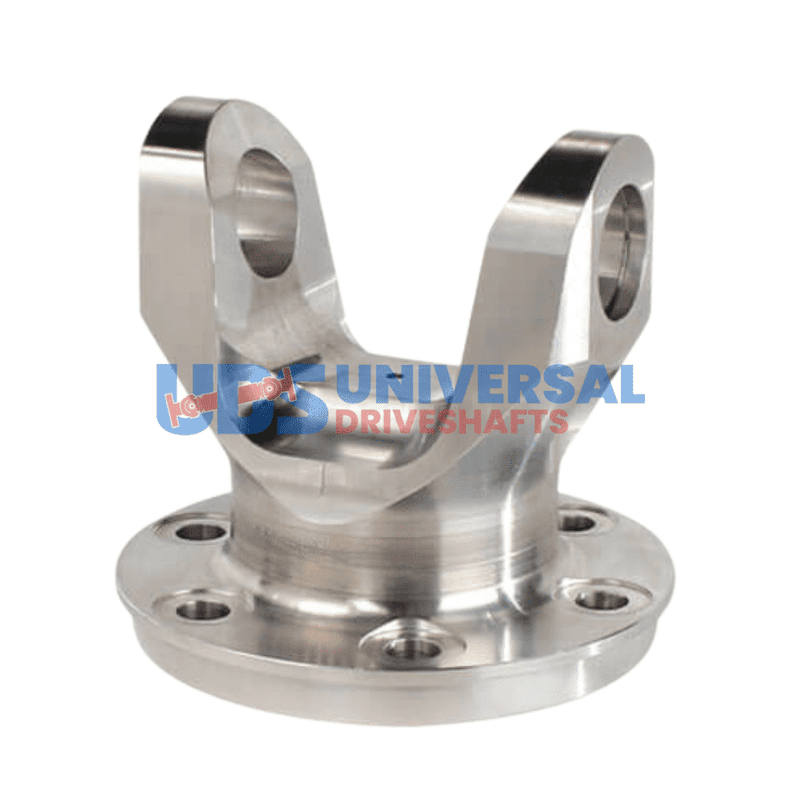

T35-ALFY-10U — UDS 1350 Series flange yoke, 3.661″ bolt circle, 4.328″ pilot diameter. Replaces CV for 1pc conversion. Ford Mustang (15-19), Aluminum 6061-T6, 93mm bolt circle
Full Description
The T35-ALFY-10U flange yoke from UDS is a 1350 Series companion flange designed for Replaces CV for 1pc conversion. Ford Mustang (15-19), Aluminum 6061-T6, 93mm bolt circle. With a 4.328" pilot diameter and 3.661" bolt circle, this yoke mates to the companion flange on the differential or transfer case output, providing the secure mounting point for the driveshaft's U-joint.
Engineering and Design
Flange yokes are the most critical interface between the rotating driveshaft and the stationary axle housing. The pilot diameter (4.328") must match the companion flange register bore exactly for the yoke to run true. The bolt circle (3.661") and bolt hole diameter (0.438") must also match the companion flange bolt pattern to the thousandth of an inch -- any offset creates a dynamic imbalance that grows with speed.
- Pilot diameter: 4.328" -- registers against companion flange bore
- Bolt circle: 3.661" -- match to companion flange pattern
- Bolt hole diameter: 0.438" -- verify bolt size compatibility
- Series: 1350 Series -- all U-joint caps must be 1350 Series rated
- Application: Replaces CV for 1pc conversion. Ford Mustang (15-19), Aluminum 6061-T6, 93mm bolt circle
Specifications
The following table provides full dimensional data for the T35-ALFY-10U. Measure your companion flange before ordering.
| Specification | Value |
|---|---|
| Series | 1350 Series |
| Pilot Diameter | 4.328" |
| Bolt Circle Diameter | 3.661" |
| Bolt Hole Diameter | 0.438" |
| Notes / Application | Replaces CV for 1pc conversion. Ford Mustang (15-19), Aluminum 6061-T6, 93mm bolt circle |
| Brand | UDS |
Installation and Torque Requirements
Flange yoke installation requires that the companion flange mating surface is clean and flat. Any burrs or high spots on the mating face will cause the yoke to run out-of-true, producing vibration. Torque the flange bolts to the manufacturer's specification in a star pattern -- never in a circular sequence -- to ensure even clamping force across the flange face.
After installation, spin the driveshaft by hand and check for binding at any point in the rotation. Binding indicates either a misaligned yoke or a U-joint that was not installed squarely. Correct these issues before driving, as binding under load will destroy the joint rapidly.
T35-ALFY-10U is a UDS product stocked at Universal Driveshafts. Contact our team for application-specific fitment verification.
Additional information
| Partn number | T35-ALFY-10 |
|---|---|
| Bolt circle dia | 3.661 |
| Bolt hole dia | 0.438 |
| Series | 1350 |
| Brand | UDS |
| Notes | Replaces CV for 1pc conversion. Ford Mustang (15-19), Aluminum 6061-T6, 93mm bolt circle |
| Bolt Holes | 6 |
| Cj to flat | 3.440 |
