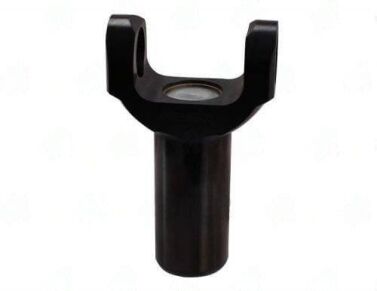

T2-3-10431HP – Transmission Yokes – 1310 Series – 31/32 X 1.397 Splines – 1.886″ Hub Dia
$212.65
1 in stock
Description
Forged chromoly 1310-series transmission yoke for Short TH400 with 31/32×1.397 splines and 1.886″ hub diameter.
Full Description
| Attribute | Specification |
|---|---|
| Part Number | T2-3-10431HP |
| Series | 1310 (1.062" cap diameter) |
| Splines | 31/32 x 1.397" |
| Hub Diameter | 1.886" |
| Center U-Joint to End | 5.500" |
| Material | Forged Steel / Chromoly |
| Application | Short TH400 |
- Forged chromoly construction resists torsional fatigue under hard launches better than cast alternatives
- 31/32-spline count on a 1.397" diameter -- confirm your TH400 output shaft is the 32-spline variant before ordering
- 1.886" hub diameter requires a matching 1.886" bore tailshaft seal; installing with a smaller-bore seal will cause immediate seal failure
- 5.500" center-to-end length suits Short TH400 builds; measure your existing yoke before substituting with the longer 2-3-10431X
- 1310-series U-joint caps at 1.062" -- cross-references Spicer 5-153X or Dana equivalent
- HP designation indicates performance-grade forging; pairs well with transmission yoke upgrades in high-torque applications
Verify the output shaft spline count on the TH400 before installation -- early short-tail units used 27-spline shafts, while the most common variant runs 32 splines. An undersized spline fit will feel snug initially but will clock and strip under load within a few passes.
Additional information
| Center u joint to end | 5.500 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.886 |
| Notes | Short TH400 / Forged Steel / CHROMOLY |
| Partn number | T2-3-10431HP |
| Series | 1310 |
| Splines count dia | 31/32 X 1.397 |
