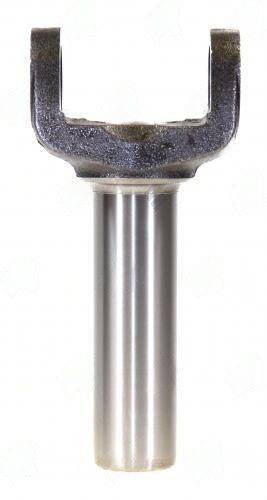

3R03-700 Transmission Yoke Inside Snap Ring 3R Ser’ 26/27 Splines GM APP Turbo 350 T56 4L60E AND MORE
$32.92
+50 in stock
Description
3R-series inside snap-ring transmission yoke for TH350, T56, 4L60E, 200-R4, and related GM 26/27-spline output shafts.
Full Description
3R03-700 -- 3R Transmission Yoke for GM 26/27-Spline Output Shafts
The 3R03-700 is a universal-fit inside snap-ring transmission yoke covering GM's extensive 26/27-spline, 1.176" PD output shaft family. Confirmed fitments include the Turbo 350 (TH350), T56 six-speed manual, T375, T-5, T-10, Saginaw, Powerglide (some variants), M21, M20, 700R4, 4L65E, 4L60E, 200-R4, and various transfer case applications in this spline class.
The 6.750" center-to-end dimension suits TH700-length and T56 tailshaft configurations. For TH350 applications using the same spline, the 3R03-350 at 5.460" is the correct length -- installing the 3R03-700 on a TH350 will result in driveshaft engagement that is 1.290" deeper than stock, which can bottom the tube on the seal housing if not accounted for in the driveshaft tube length. Always calculate driveshaft tube length from transmission yoke CL to pinion CL when changing yoke lengths.
Additional information
| Center u joint to end | 6.750 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.500 |
| Partn number | 3R03-700 |
| Series | 3R |
| Splines count dia | 26/27 X 1.176 |
