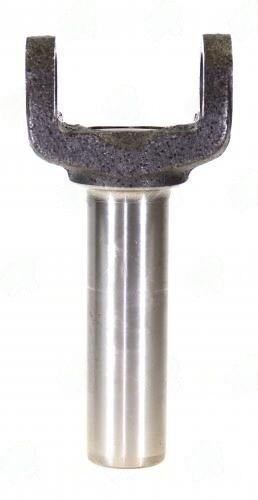

3R03-703 Transmission Yoke Inside Snap Ring 3R TH 700/700R4 ,It has the same spline and ground hub as a Turbo 350 yoke but is approximately 1.3″ longer.
$70.86
33 in stock
11
People watching this product now!
Description
3R03-703 UDS 3R series slip yoke. Splines: 26/27 X 1.176, CJ-to-end: 6.750″. Verify stop shaft spline count and diameter before ordering.
Full Description
3R03-703 UDS 3R Slip Yoke
The 3R03-703 is a 3R series slip yoke manufactured by UDS. The slip yoke slides over the stop shaft — the splined stub welded onto the front section of the driveshaft tube — and telescopes in and out as the suspension cycles. This allows the driveshaft to change working length without binding.
The spline bore is 26/27-inch diameter with 1.176 splines. The stop shaft on the driveshaft tube must have an identical 26/27-inch diameter and 1.176-spline profile — a mismatch in either count or diameter means the yoke will not engage. The centerline-to-end dimension is 6.750 inches, measured from the U-joint centerline to the open end of the spline bore. This controls minimum engagement depth under full suspension droop — ensure sufficient spline overlap remains at maximum driveshaft extension. GM#26051658. The 3R series uses 1.062-inch cap diameter U-joints and is standard for GM 3/4-ton and 1-ton trucks.
Specifications
- Part Number: 3R03-703
- Brand: UDS
- Series: 3R
- Center u joint to end: 6.750
- Counter bore dia: 0
- Hub dia: 1.500
- Notes: GM#26051658
- Splines count dia: 26/27 X 1.176
Fitment & Installation Notes
When selecting the 3R03-703, verify the stop shaft spline count and diameter match the 26/27 X 1.176 specification. Inspect the stop shaft for wear or damage; a worn shaft will produce lash even with a new yoke.
View the full range of Transmission Yokes in 3R and adjacent series configurations.
Additional information
| Center u joint to end | 6.750 |
|---|---|
| Counter bore dia | |
| Hub dia | 1.500 |
| Notes | GM#26051658 |
| Partn number | 3R03-703 |
| Series | 3R |
| Splines count dia | 26/27 X 1.176 |
