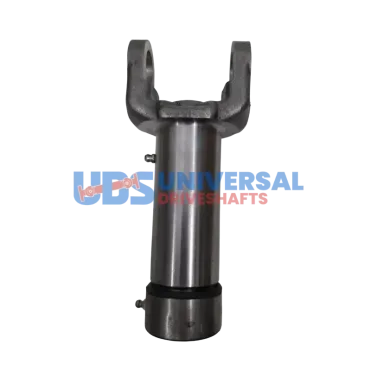

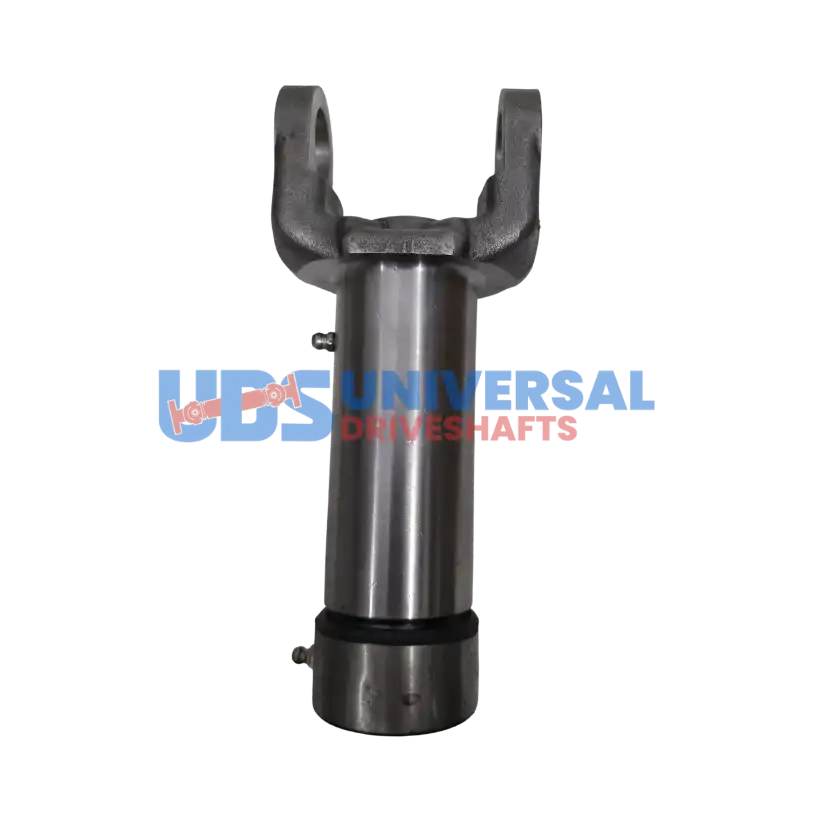

3R-3-9170KX Slip Yoke 3R series, Splines: 1.375×16 Center Joint To End 7.375
$31.25
6 in stock
15
People watching this product now!
Description
3R-3-9170KX 3R series slip yoke. 1.375 in spline dia, 16 spline count, 7.375 in center U-joint to end. Verify stop shaft spline count and diameter before ordering.
Full Description
3R-3-9170KX 3R Series Slip Yoke
The 3R-3-9170KX is a 3R series slip yoke with a 1.375-inch spline diameter and 16-spline count. The centerline-to-end dimension is 7.375 inches. This yoke slides onto the splined stop shaft of the front driveshaft section, allowing the driveshaft assembly to change working length as the suspension articulates through its travel range.
Specifications
- Part Number: 3R-3-9170KX
- Series: 3R
- Spline Diameter: 1.375 in
- Spline Count: 16
- Center U-Joint to End: 7.375 in
When fitting the 3R-3-9170KX, confirm the stop shaft spline diameter is 1.375 inches with a 16-spline profile. The 3R series has distinct U-joint ear dimensions from SAE series joints; the yoke must be paired with a 3R series U-joint to achieve correct cap fit. The 7.375-inch CJ-to-end provides a deep engagement length, suitable for applications requiring substantial axial travel.
The 3R-3-9170KX differs from the 3R-3-9165KX by its 16-spline count (vs. 31/32 compound count). Confirm the stop shaft spline profile matches this 16-spline specification before ordering. Mixing 3R series yokes with incompatible stop shaft spline counts will result in a non-functional assembly. Verify spline count and diameter against the stop shaft before installation.
Additional information
| Series | 3R |
|---|---|
| Notes | UDS |
| Splines count | 16 |
| Splines dia | 1.375 |
| Partn number | 3R-3-9170KX |
| Center u joint to end | 7.375 |
